Technical Overview
Cooktop type
Gas cooktop
Total number of positions that can be used at the same time
5
stepFlame Technology
Yes
Basic surface material
Stainless steel

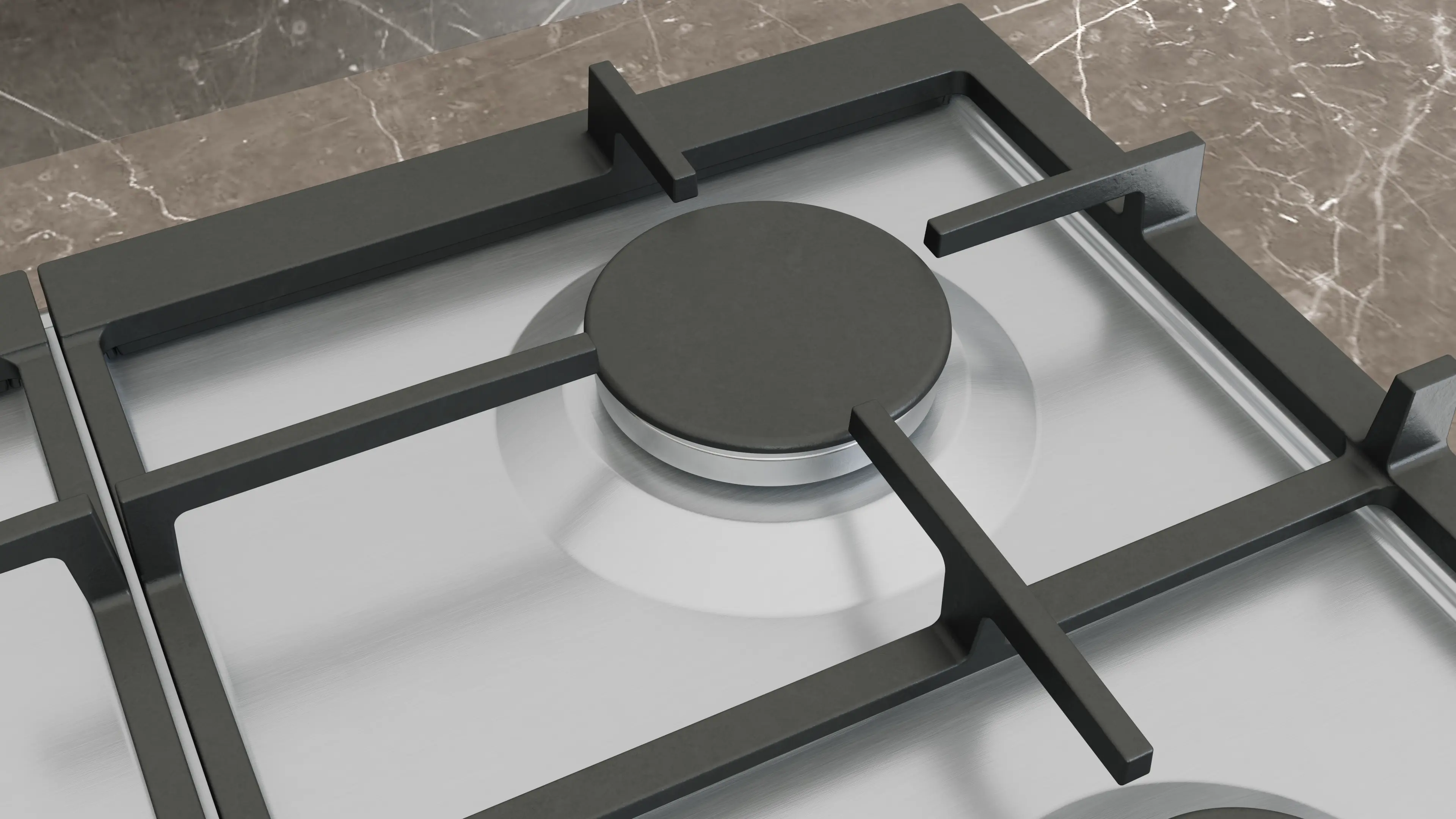

Material of pan supports
Cast iron with rubber feet
Gas type preset
Liquidgas G30,31 28-30/37 mbar
Highlights
Specifications

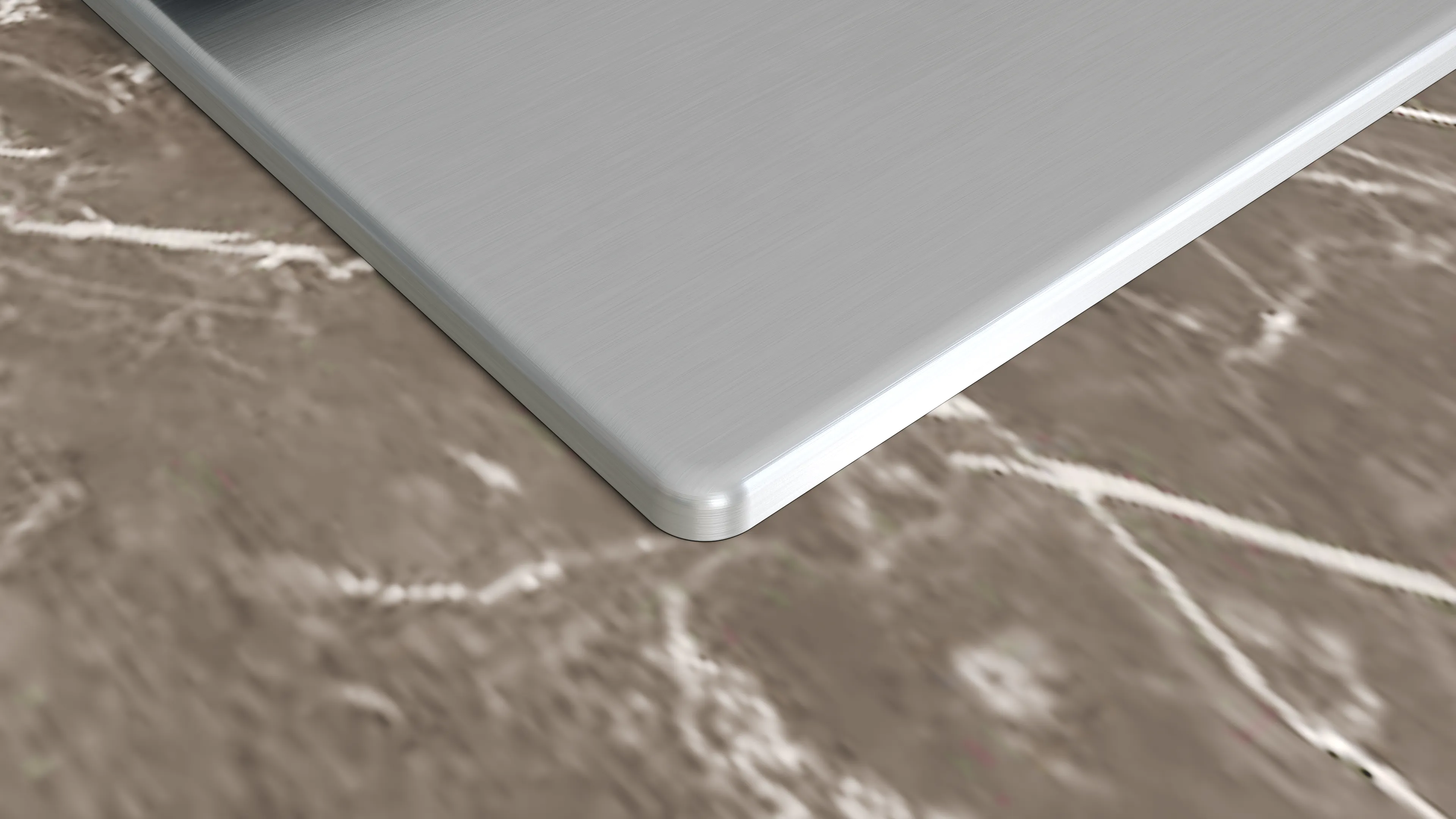

Basic surface material
Stainless steel
Flushmount
No
Material of pan supports
Cast iron with rubber feet
Flat burner
No
Gas type preset
Liquidgas G30,31 28-30/37 mbar
Width
90 cm
Dimensions
45x915x520 mm
Dimensions of the packed product (HxWxD)
170x1120x660 mm

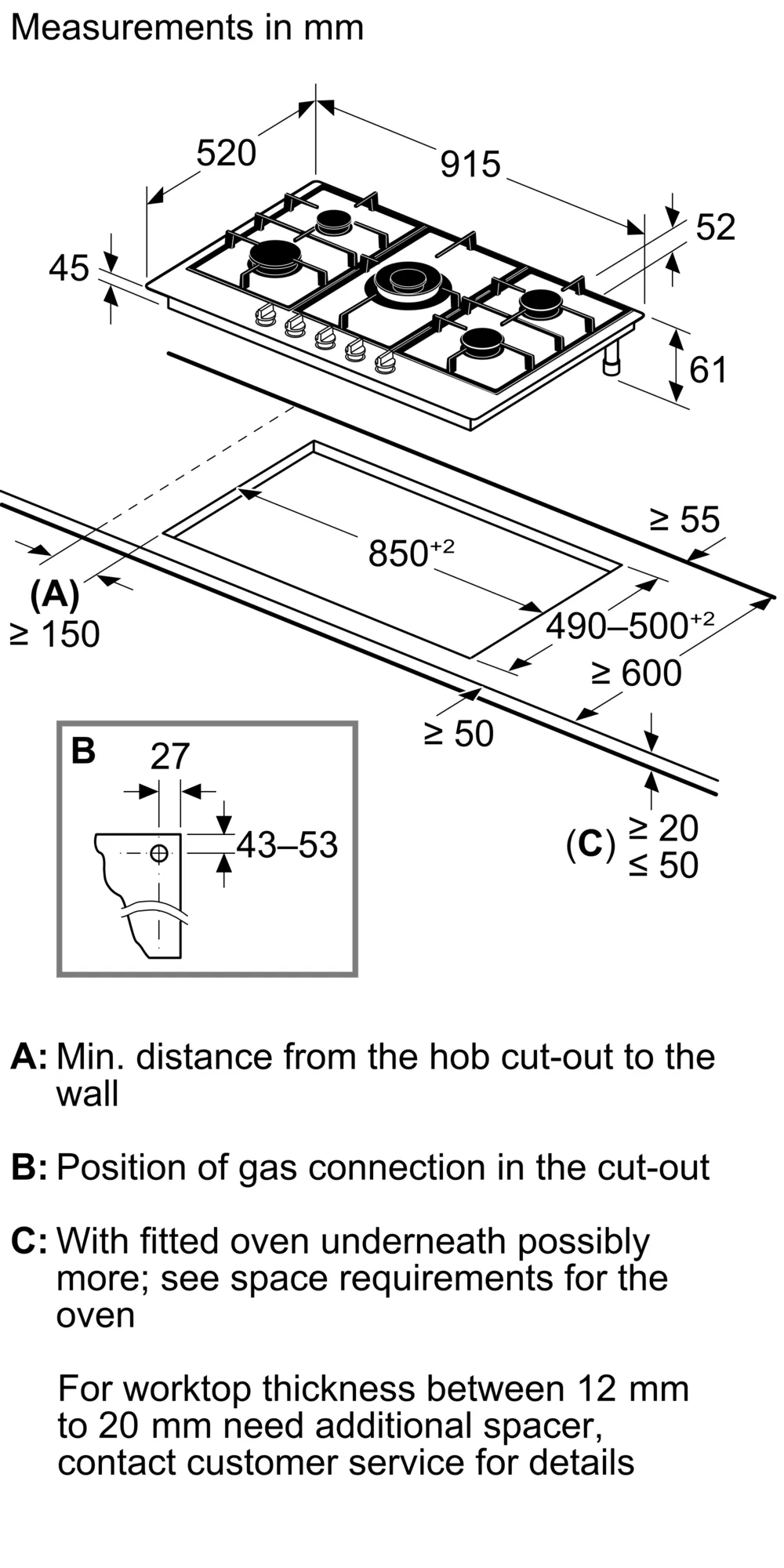

Required niche size for installation (HxWxD)
45 x 850-850 x 490-500 mm
Minimum worktop thickness (without spacer / with spacer, order seperately)
20 mm / 12 mm
Length electrical supply cord
100 cm
Voltage
220-240 V
Plug type
GB plug
Gas connection rating
12500 W
Total number of positions that can be used at the same time
5
Dual wok burner
Yes
Type Cooking zone
Standard burner, Standard burner, Economy burner, High-speed burner, WOK burner
stepFlame Technology
Yes
Display
No
Dishwasher suitable pan support
Yes
Removable knobs for easy cleaning
Yes

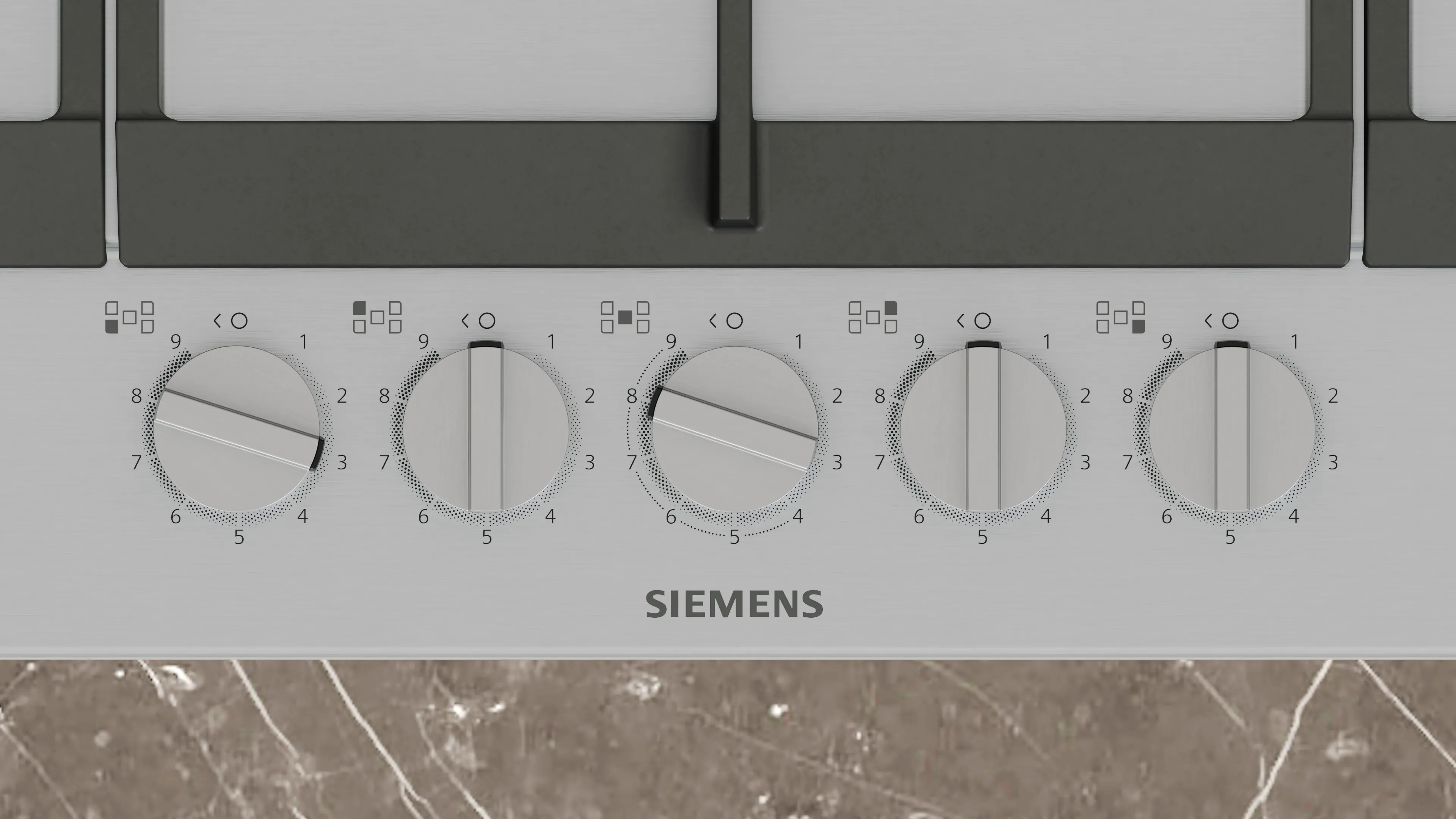

Location of control panel
Front
Hob ignition
Knob ignition
One piece burner
No
Home Connect
No
Residual heat indicator
without
Main on/off switch
No
