iQ500 60 cm dishwasher Integrated - Stainless steel

SN558S10MM


speedMatic dishwasher with innovative varioSpeed Plus for a cycle time that's up to two-thirds shorter and energy efficiency class A++.

Highlights

Wash and dry three times as fast: varioSpeed Plus.

When you press the varioSpeed Plus button, you reduce the washing time by up to 66%*. The reduced time is immediately shown in the remaining time display. As a result, your dishes are always sparkling clean and dry within the shortest time. * This does not apply to the pre-rinse and quick wash programmes.

Economical drying with a brilliant shine: Zeolith® drying.

The mineral zeolite has the ability to absorb moisture and convert it into energy. The versatile material thus ensures faster and energy-efficient drying of your dishes.

Efficient, durable and quiet: the iQdrive motor.

Lower energy consumption with identical performance, short programme times with optimum results and always nice and quiet whatever the programme – all that is not a problem for the iQdrive motor. And on top of all these advantages, it runs virtually free from wear.

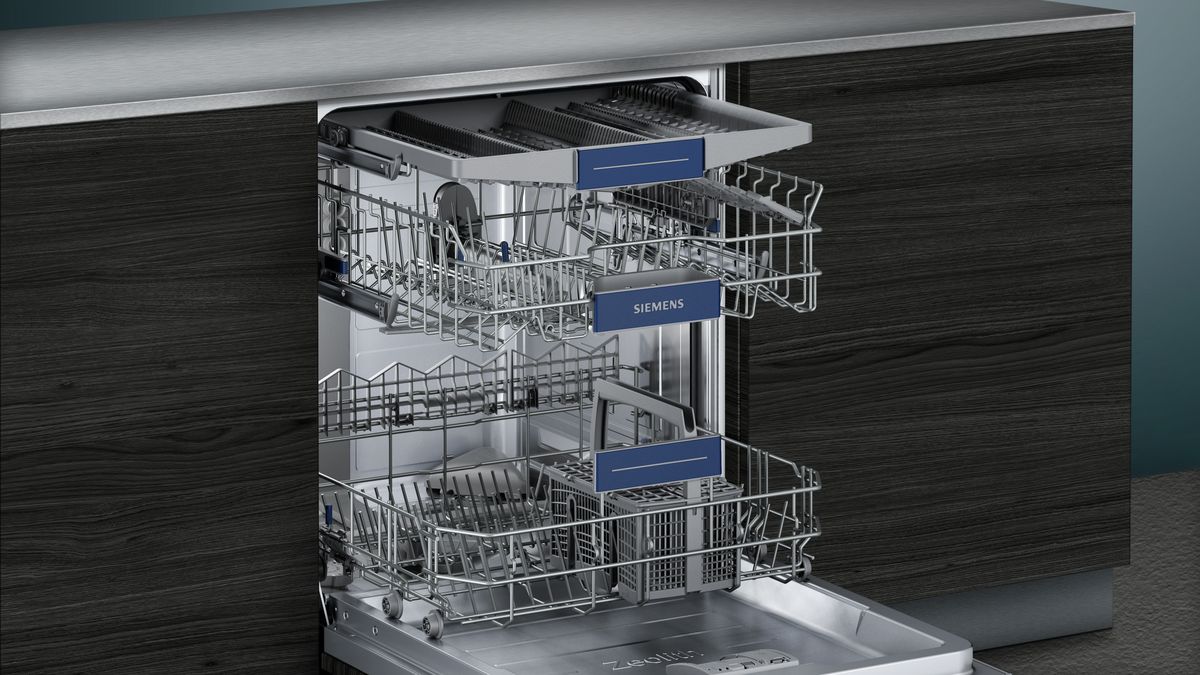

Not just for your cutlery, but also for your espresso cups: the varioDrawer.

The varioDrawer offers an additional loading level. Thanks to its special design it not only provides room for cutlery, but also for ladles, salad servers and even small items of crockery such as espresso cups. And as there is no longer a cutlery basket in the bottom basket, there is now space for a total of 14 standard place settings.

Loading lots of dishes is easy:

The basket is equipped with special devices at the top. If they are pressed, the height of the top basket can be easily adjusted in three stages. That makes loading and unloading simpler, particularly when dealing with large pots or plates.

Specialized in gentle cleaning: The Glass 40 °C cycle.

Fine glassware requires special care in cleaning. Siemens’ new Glass 40 °C cycle is specifically designed to meet this need. It first cleans glasses carefully but thoroughly at low temperatures. This is followed by a drying phase which has been specially extended for extra-gentle drying. The results are impressive: gleaming glassware you’ll be able to enjoy for a much longer time.

Releases the full strength of the detergent: dosageAssist.

The cleaning tablet falls directly into a small catch pan thanks to dosageAssist. A precisely aimed jet of water quickly dissolves it. The detergent is distributed evenly throughout the machine, always guaranteeing optimum cleaning results for you.

Gentle on top, high pressure below: the intensiveZone.

Selecting the intesiveZone increases the water spraying pressure for very dirty dishes in the lower rack. In the upper rack the programme remains unchanged and delicate dishes are still gently cleaned.

More flexibility during loading: the height-adjustable top basket.

Many Siemens dishwashers are equipped with height-adjustable top baskets for flexible loading of dishes of different heights. Whether you want to load tall glasses on top or large plates on the bottom, you can easily accommodate large dishware by adjusting the height of the top basket.

Optimum dishwashing results at the touch of a button: autoProgramme.

After the autoProgramme button has been pressed, aquaSensor checks how dirty the water is and controls when and how much clean water is added as well as the dishwashing temperature.

Gentle, safe, clean: the glassCare System.

The glassCare System – consisting of glass protection technology, a special gentle programme, and a heat exchanger – will wash your glassware with the greatest of care.

Additional information

Product details
  • Capacity: 14 place settings place settings
  • Energy Class: 5 Energy Stars
  • Energy consumption in programme Eco 50: 239 kwhper year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
  • Energy consumption in programme Eco 50: 0.854 kwh
  • Power consumption off-mode / left-on mode: NO_FEATURE / NO_FEATURE
  • Water consumption in programme Eco 50: 2520 litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
  • Consumption in programme Eco 50: 2520 litres water per year / 239 kwh energy per year. Based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes.
  • Drying efficiency class NO_FEATURE on a scale from G (least efficient) to A (most efficient)
  • The information relates to the programme ​Eco 50. This programme is suitable to clean normally soiled tableware and is the most efficient programme in terms of combined energy and water consumption.
  • Programme time in programme Eco 50: 195 min
  • Duration of the left-on mode: NO_FEATURE
  • Noise level: 42 dB (re 1 pW)
  • Integrated
  • Energy consumption when connected to hot water in programme Eco 50: 0.6 kwh
  • 8 programmes: Intensive 70 °C, Auto 45-65 °C, Eco 50 °C, Night Program 50 °C, Glass 40 °C, Quick wash
  • 4 special options: Intensive Zone, VarioSpeedPlus, HygienePlus, Glanztrocknen
  • 5 cleaning temperatures
  • speedMatic hydraulic system
  • DosageAssist
  • BLDC motor for heat and drain pump
  • Aqua-Sensor, Load Sensor
  • Detergent Automation
  • Heat exchanger
  • Alternating spray technique
  • Regenerative electronics
  • Self-cleaning filter system with 3-fold corrugated filter
  • Stainless steel
  • Time remaining indicator front
  • Programme flow display
  • LED colour on indicators blue/white
  • Electronic delay timer: 1-24 hours
  • LED salt refill indicator
  • LED rinse aid refill indicator
  • yes
  • Silver XXL baskets
  • rackMatic height-adjustable top basket (3 stage)
  • 2 foldable plate racks in top basket
  • 4 foldable plate racks in bottom basket
  • 2 lever (long/short) 2
  • 2 shelves in bottom basket
  • aquaStop with guarantee - Prevent Water Leakage
  • Childproof control lock
  • Servo lock for effortless door closing
  • Front-adjustable rear foot
  • Inclusive Steam protection plate
  • Dimensions of the product (HxWxD): 81.5 x 59.8 x 57.3 cm
Technical Information
General
Width of the product (mm) 598 mm
Height (mm) 815 mm
Installation typology Half-integrated
Number of place settings 14
Water consumption (l) 9.0 l
Total annual energy consumption 188.4 kWh
List of programmes Auto, Economy, Glass, Intensive, night program, Pre-Rinse, Quick wash
Additional operational options brilliant dry, HygienePlus, Intensive Zone, Machine Care, VarioSpeedPlus
Digital countdown indicator
Noise level (dB) 42
3rd Rack 3rd Rack 1.1
Interior light
Removable top
Length electrical supply cord (cm) 175 cm
Length outlet hose (cm) 190 cm
Connectivity
Home Connect
Construction type
Color / Material body Lacquered
Color / Material panel Stainless steel
Installation type Built-in
Door panel options Not possible
Drying system Zeolith
Height (mm) 815 mm
Hidden heating element
Installation typology Half-integrated
Removable top
Tub material Stainless steel
Water softener
Width of the product (mm) 598 mm
Size and weight
Height with worktop (mm) 815 mm
Number of Options 5
Adjustable plinth both horizontal and vertical
Net weight (kg) 46.9 kg
Programmes
List of programmes Auto, Economy, Glass, Intensive, night program, Pre-Rinse, Quick wash
Name, programme 1 Intensive
Name, programme 2 Auto
Name, programme 3 Economy
Name, programme 4 night program
Name, programme 5 Glass
Name, programme 6 Quick Wash
Programme duration, programme1 (min.) 135-140
Programme duration, programme2 (min.) 90-150
Programme duration, programme3 (min.) 195
Programme duration, programme4 (min.) 235
Programme duration, programme5 (min.) 90-100
Programme duration, programme6 (min.) 60
Reference programme Eco
Number of different wash temperatures 5
Temperature, programme 1 (°C) 70
Temperature, programme 2 (°C) 45-65
Temperature, programme 3 (°C) 50
Temperature, programme 4 (°C) 50
Temperature, programme 5 (°C) 40
Temperature, programme 6 (°C) 65
Safety
Glass protection techn.
Surge-back protect. installed
Water protection system Total system
Consumption values
Glass protection techn.
Total annual energy consumption 188.4 kWh
Energy consumption (kWh) 0.85 kWh
Energy consumption, programme1 (kWh) 1.25-1.3
Energy consumption, programme2 (kWh) 0.8-1.3
Energy consumption, programme3 (kWh) 0.854
Energy consumption, programme4 (kWh) 0.8
Energy consumption, programme5 (kWh) 0.85-.9
Energy consumption, programme6 (kWh) 1.4
Water consumption, programme 1 (l) 12-15
Water consumption, programme 2 (l) 7-18
Water consumption, programme 3 (l) 9
Water consumption, programme 4 (l) 10
Water consumption, programme 5 (l) 11-14
Water consumption, programme 6 (l) 11
Water consumption (l) 9.0 l
Maximum temperature for water intake (°C) 60 °C
Connection
Connection Rating (W) 2,400 W
Length electrical supply cord (cm) 175 cm
Current (A) 10 A
Length inlet hose (cm) 140 cm
Length outlet hose (cm) 190 cm
Plug type GB plug
