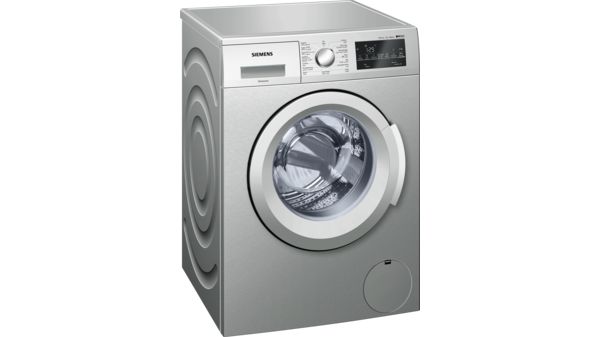

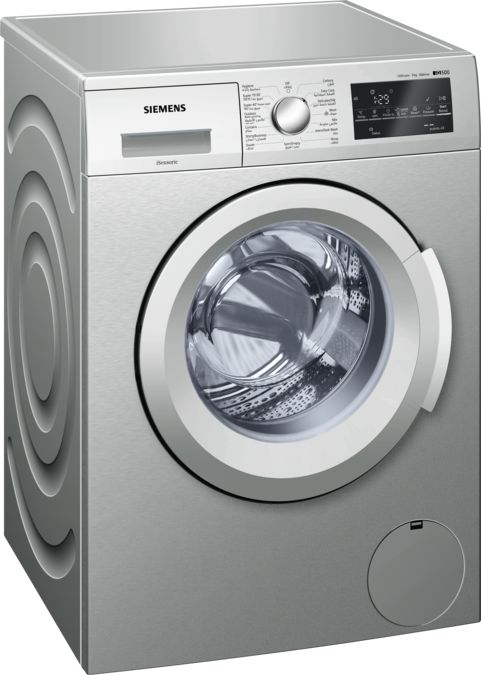

iQ500 Automatic washing machine

WM12T46SGC


iSensoric Washing Machine with iQDrive for highly effective and efficient laundry care with large easy-to read display.

Highlights

The clever solution for forgotten items of laundry: the reload Function.

Whether a forgotten sock or shirt – with the Reload Function you can now stop the already running washing procedure and open the door of the washing machine to add any forgotten items of laundry to the washing machine drum.

Efficient, durable and quiet: iQdrive.

Always nice and quiet, whether lower energy consumption with identical performance, short programme times with optimum results or even with maximum spin settings – all that is not a problem for the brushless iQdrive motor. And on top of all these advantages, it runs virtually free from wear.

Intuitive operation and convenient additional function: the large display with end-time delay

The large display provides maximum convenience and flexibility during washing, showing all relevant programme information at a glance such as programme sequence, temperature and speed and providing helpful additional functions such as 24-hour end-time delay and much more.

Additional information

Main features
  • Capacity: 9 kg
  • Energy Efficiency Class: 4 Energy Stars
  • Energy consumption 152 kWh per year, based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
  • energy consumption of the standard 60 °C cotton programme 0.92 kwh at full load and 0.6 kwh at partial load and of the standard 40 °C cotton programme 0.42 kwh at partial load
  • weighted power consumption off-mode / left-on mode: 0.12 W / 0.43 W
  • Water consumption 11200 litres per year, based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
  • spin-drying efficiency class: B
  • Max. spin speed: 1200 rpm
  • Cottons 60 Eco and Cottons 40 Eco are the standard washing programmes to which the information in the label relates. These programmes are suitable to clean normally soiled cotton laundry and are the most efficient programmes in terms of combined energy and water consumption.
  • Programme time:60 °C cotton programme 275 min at full load 270 min at partial load and 40 °C cotton programme 270 min partial load
  • Duration of the left-on mode: 15 min
  • Noise level washing dB (A) re 1 pW: 51
  • Noise level spinning dB (A) re 1 pW: 75
  • 4 Energy Stars according to the UAE energy efficiency label with energy consumption of 220 kwh per year and water consumption of 14829 l per year
Programmes
  • Special programmes: Single Rinse, Intensive/rapid Power Wash 60, jeans, outdoor/waterproofing, shirts, quick wash/mixture, Drain / Spin, AllergyPlus / Hygiene, Super 15 min / Super 30 min, Duvet, wool, delicates/silk
Options
  • Touch control buttons: Start / Reload / Pause, Spin speed reduction/Yes
Convenience and Safety
  • Reload Function: Stop the already running washing machine to add any forgotten items of laundry to the washing machine drum.
  • waveDrum: for highly effective and extremely gentle laundry care

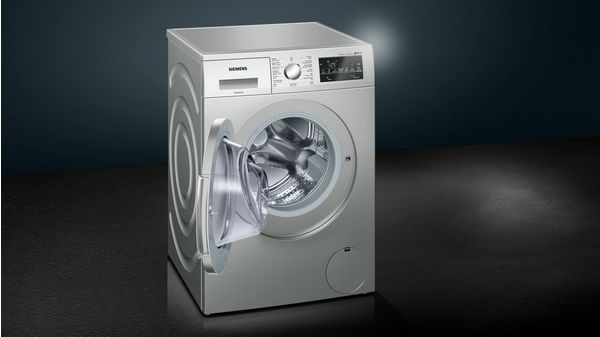

  • 32 cm porthole, silver inox with 165° opening door
  • Metal door closing hook
  • Magnet Lock
  • AntiVibration Design - More stability
  • Flow-through sensor
  • waterPerfect: resource gentle water management
  • Multiple water protection
  • Aquatronic wash system
  • infinitely variable
  • Indication of energy consumption prior to start of programme

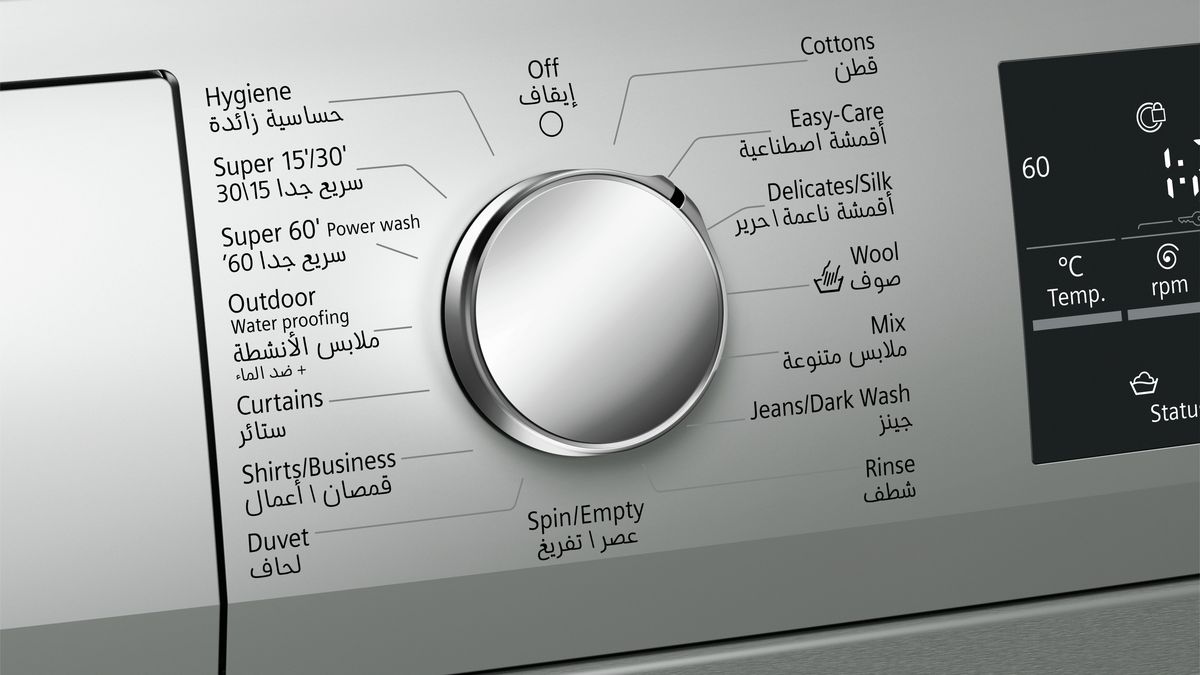

  • Fully electronic control dial for wash programmes, temperature and special programmes

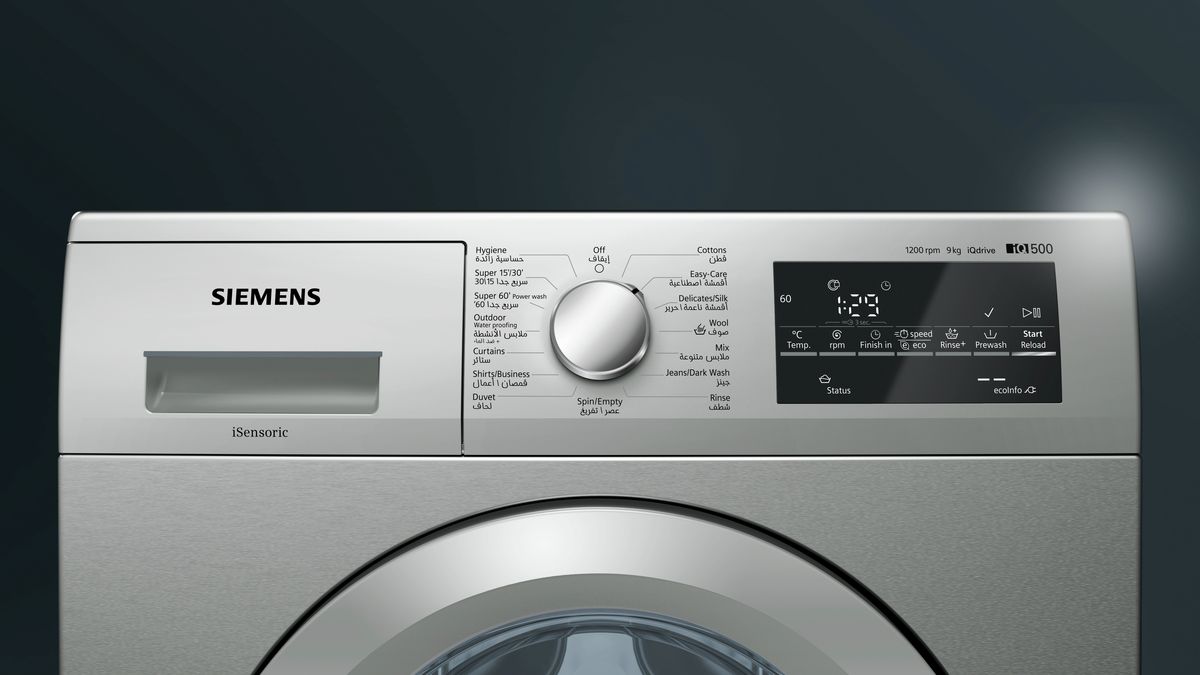

  • Large LED-Display for programme status indication, temperature selection, max. spin speed, remaining time and 24 h end time delay, load recommendation and consumption indication
  • AquaSensor for optimum rinse results: Yes
  • Foam detection system
  • Unbalanced load detection
  • Childproof door lock
  • Buzzer to indicate the end of cycle
  • Self cleaning detergent drawer
  • Divider for Liquid Detergent
Technical information
  • Can be built-under
  • Dimensions (H x W x D): 84.8 x 59.8 x 59 cm
Technical Information
General
Dimensions of the product (mm) 848 x 598 x 590 mm
Maximum spin speed (rpm) 1,200 rpm
Energy consumption annual (kWh/annum) - NEW (2010/30/EC) 152
List of programmes Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
Cottons programme Standard cold - 90°C
Easy-care programme Standard cold - 60°C
Wash optimization AllergyPlus / Hygiene, curtains 30°C, Drain / Spin, Duvet, Intensive/rapid Power Wash 60, jeans, outdoor/waterproofing, Prewash, quick wash/mixture, Ready, shirts, Single Rinse, Spin speed reduction, Start / Reload, Super 15 min / Super 30 min, Temperature selection
Digital countdown indicator
Start delay options Continuous
Noise level (dB) - Washing 51
Noise level (dB) - Spinning 75
Door opening Left
Water protection system Multiple water protection
Hot & cold water intake
Interior light
Removable top
Length electrical supply cord (cm) 160 cm
Power consumption in off-mode (W) - NEW (2010/30/EC) 0.12 W
Power consumption in left-on mode (W) - NEW (2010/30/EC) 0.43 W
Duration of the left-on mode - NEW (2012/30/EC) (min) 15 min
Available languages display Arabic
Approval certificates CE, G-Mark, VDE
Connectivity
Home Connect
Connection
Length electrical supply cord (cm) 160 cm
Frequency (Hz) 50 Hz
Hot & cold water intake
Plug type GB plug
Construction type
Color / Material body silver inox
Color / Material panel silver inox
Installation type Free-standing
Door opening Left
Installation typology Freestanding
Type Front loader
Removable top
Tub material Plastic
Wheels
Size and weight
Capacity cotton (kg) 9.0 kg
Depth with open door 90 degree (mm) 1,030 mm
Dimensions of the product (mm) 848 x 598 x 590 mm
Drum volume (l) 60 l
Height-adjustable by 1.20 cm
Net weight (kg) 69.2 kg
Comfort
Programme end indication Acoustic, LED-display
Loading sensor
Degree of dirtiness recognition
Digital countdown indicator
Drying progress indicator LED, LED-display
Noise level (dB) - Spinning 75
Noise level (dB) - Washing 51
Turbidity sensor
Start delay options Continuous
Self adjusting water level to load
Programmes
Cold wash option
Electronic After-sales Service
List of programmes Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
Pre-wash available
Cottons programme Standard cold - 90°C
Easy-care programme Standard cold - 60°C
Separate temperature control options Steps
Wash optimization AllergyPlus / Hygiene, curtains 30°C, Drain / Spin, Duvet, Intensive/rapid Power Wash 60, jeans, outdoor/waterproofing, Prewash, quick wash/mixture, Ready, shirts, Single Rinse, Spin speed reduction, Start / Reload, Super 15 min / Super 30 min, Temperature selection
Water plus
Spinning
Moisture content % on dry load after max. spin 53 %
Maximum spin speed (rpm) 1,200 rpm
Spin speed options Variable
Skip spin
Safety
Balance control
Foam control
Water protection system Multiple water protection
Consumption values
Energy consumption kWh 30C delicates (kWh) 0.19 kWh
Energy consumption kWh 30C woollens (kWh) 0.19 kWh
Energy consumption kWh 40C colour (kWh) 1.10 kWh
Energy consumption kWh 40C easy care (kWh) 0.71 kWh
Energy consumption kWh 95C cotton (kWh) 2.14 kWh
