iQ700 LC98BA572B Box slimline design

LC98BA572B

EU Energy Label
In a range from: A++ to E

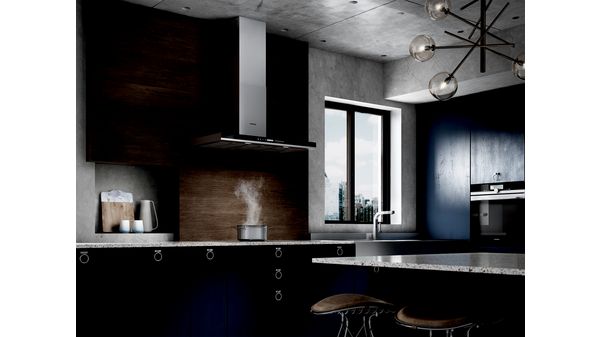

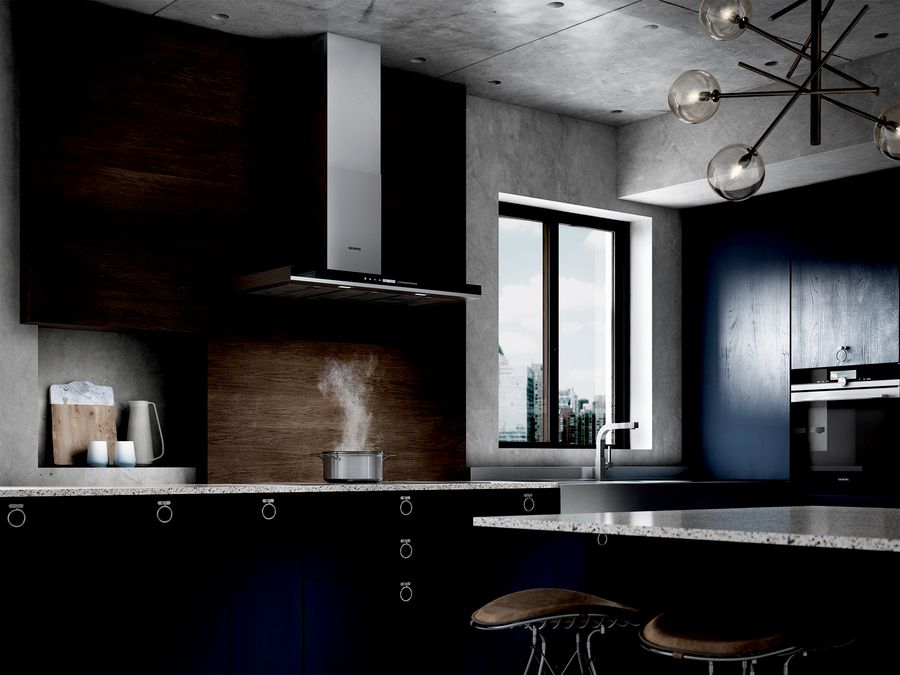

Perfect for smaller spaces the wall-mounted chimney hood features a high extraction rate.

Highlights

Nice and bright while saving energy: LED lighting.

For a better overview when cooking, the innovative LED lights in the extractor hoods supply more light from above on your hob. Another bright spot: The long-lasting lights consume very little energy.

Intensive setting with automatic after revert setting

The intensive setting temporarily increases the extraction rate when kitchen vapour is especially intense, with automatic revert after 6 minutes.

extraction rate

The 860 m3/h extraction rate supplies clean air when cooking.

Appliance Details

Design
  • 90 cm wide
  • Stainless Steel
  • White electronic display
  • Electronic control via touchControl
  • For wall mounted installation
  • Designed for suspended or flush ceiling installation
Key Information
  • touchControl for extractor speeds and light
  • Boost function
  • 3 x LED lights
  • softLight with dimmer function
  • 3 x metal grease filter cassettes - dishwasher safe
  • Grease filter saturation indicator
  • Steel filter cover
  • Inner frame
Performance/technical information
  • Suitable for ducted and re-circulating operation
  • For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
  • Extraction rate according to EN 61591 ø 15 cm:
    max. Normal use 460 m³/h
    Intensive 860 m³/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
    Max. normal use: 55 dB(A) re 1 pW (41 dB(A) re 20 µPa sound pressure)
    Intensive: 68 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
  • Additional noise reduction insulation
  • 3 power levels and 2 intensive settings
  • Automatic intensive revert
  • Automatic after running (10 minutes)
  • Noise max. Normal Level: 55 dB*
  • Extractor hose 120 mm
  • Dimensions (WxD): 900 x 500 mm
  • Dimensions exhaust air (HxWxD): 628-954 x 900 x 500 mm
  • Dimensions recirculating with cleanAir module (HxWxD): 809-1139 x 900 x 500 mm
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Light Intensity: 897 lux
  • Colour Temperature: 3500 K
  • Average Energy Consumption: 37.2 kWh/year*
  • Energy Efficiency Class: A+ (at a range of energy efficiency classes from A++ to E)*
  • Blower Efficiency Class: A*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: C*
Technical Information
General information
Type of appliance width (cm) 90 cm
Depth (mm) 500 mm
Construction type Built-in
Ventilation type Convertible
Maximum output recirculating air (m3/h) 350
Sound pressure max. normal 41
Type of control setting devices 7-segment display, touch control
Energy efficiency A+
Total annual energy consumption 37.2
Connectivity
Home Connect
Design
Diameter of air outlet (mm) 120 / 150 mm
Color body Stainless steel
Color chimney Stainless steel
Grease filter material Washable stainless steel
Grease filter type Kassette
Installation typology Wall-mounted
Material body Stainless steel
Material chimney Stainless steel
Number of motors 1
Ventilation type Convertible
Typology Chimney
Connection
Connection Rating (W) 169 W
Length electrical supply cord (cm) 130 cm
Frequency (Hz) 50; 60 Hz
Total power of the lamps (W) 9 W
Total power of the motors (W) 160 W
Nominal power (kW) 220-240 V

* In accordance with the EU-Regulation No 65/2014

  • 8 Accessories for

€23.43

Unit: 1 Piece

In stock
Product details

€13.97

Unit: 1 Piece

In stock
Product details

€13.39

Unit: 1 Piece

In stock
Product details

€477.78

Unit: 1 Piece

In stock
Product details

€295.13

Unit: 1 Piece

In stock
Product details

€135.34

Unit: 1 Piece

In stock
Product details

€97.10

Unit: 1 Piece

In stock
Product details

€443.92

Unit: 1 Piece

In stock
Product details

Reviews

User manuals

You can access and download user manuals and other documentation about your Siemens home appliance online.

Currently there are no documents available.

Deconstruction manual

Information for professionals relevant for disassembly and dismantling according to the EU ecodesign regulations for vacuum cleaners, range hoods, ovens, hobs and water heaters (EU) No 666/2013, (EU) No 66/2014 and (EU) No 814/2013

Line drawings
