iQ300 Chimney hood, 60 cm Inclined glass brand design black with glass canopy

LC67KHM60


Angled extractor hood with outstanding design and high extraction rate for a powerful performance.

Highlights

Intensive setting with automatic after revert setting

The intensive setting temporarily increases the extraction rate when kitchen vapour is especially intense, with automatic revert after 6 minutes.

Additional information

Technical information:
  • Glass plate: clear glass black printed
  • Ducted/Recirculating operation
  • In recirculation operation chimless use possible
  • For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
  • Designed for wall mounted installation
  • touch control for extractor speeds and light
  • Electronic controls
  • touch control with Electronic display
  • Electronic controls via touch control with Electronic display
  • touch control (3 speed control plus intensive setting) with Electronic display
  • 3 speed control plus intensive setting
  • 2 capture areas: front side and bottom side
  • Intensive op. revert dur.: 6 min.
  • Easy to clean
  • Twin channel high performance fan motor
  • 2 x 1,5W LED
  • Metal grease filter with side extraction
  • Filter cover glass
  • Removable metal grease filters, dishwasher safe
  • Extraction rate according to DIN/EN 61591 ø 15 cm: max. Normal 400 m³/h Intensive 660 m³/h
  • Ducted extraction rate according to DIN/EN 61591max. 400 m³/h
  • Maximum extraction 400 m3/h
  • Extraction rate exhaust air according to EN 61591:
    max. normal use 400 m³/h, intensive 660 m³/h
  • Noise level according to EN 60704-3 und EN 60704-2-13 at max. normal use exhaust air: 57 dB(A) re 1 pW (43 dB(A) re 20 µPa sound pressure)
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
    Max. normal use: 57 dB(A) re 1 pW (43 dB(A) re 20 µPa sound pressure)
    Intensive: 66 dB(A) re 1 pW (52 dB(A) re 20 µPa sound pressure)
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Yes
  • Max. extraction rate: 660 m3/h
  • Extraction rate in recirculation mode:
    Max. normal use: 380 m³/h
    Intensive: 570 m³/h
  • Noise levels in recirculation mode:
    Max. normal use: 67 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
    Intensive: 74 dB(A) re 1 pW (61 dB(A) re 20 µPa sound pressure)
  • Power rating: 263 W
  • Dimensions exhaust air (HxWxD): 928-1198 x 590 x 499 mm
  • Dimensions recirculating, chimney (HxWxD): 988-1258 x 590 x 499 mm

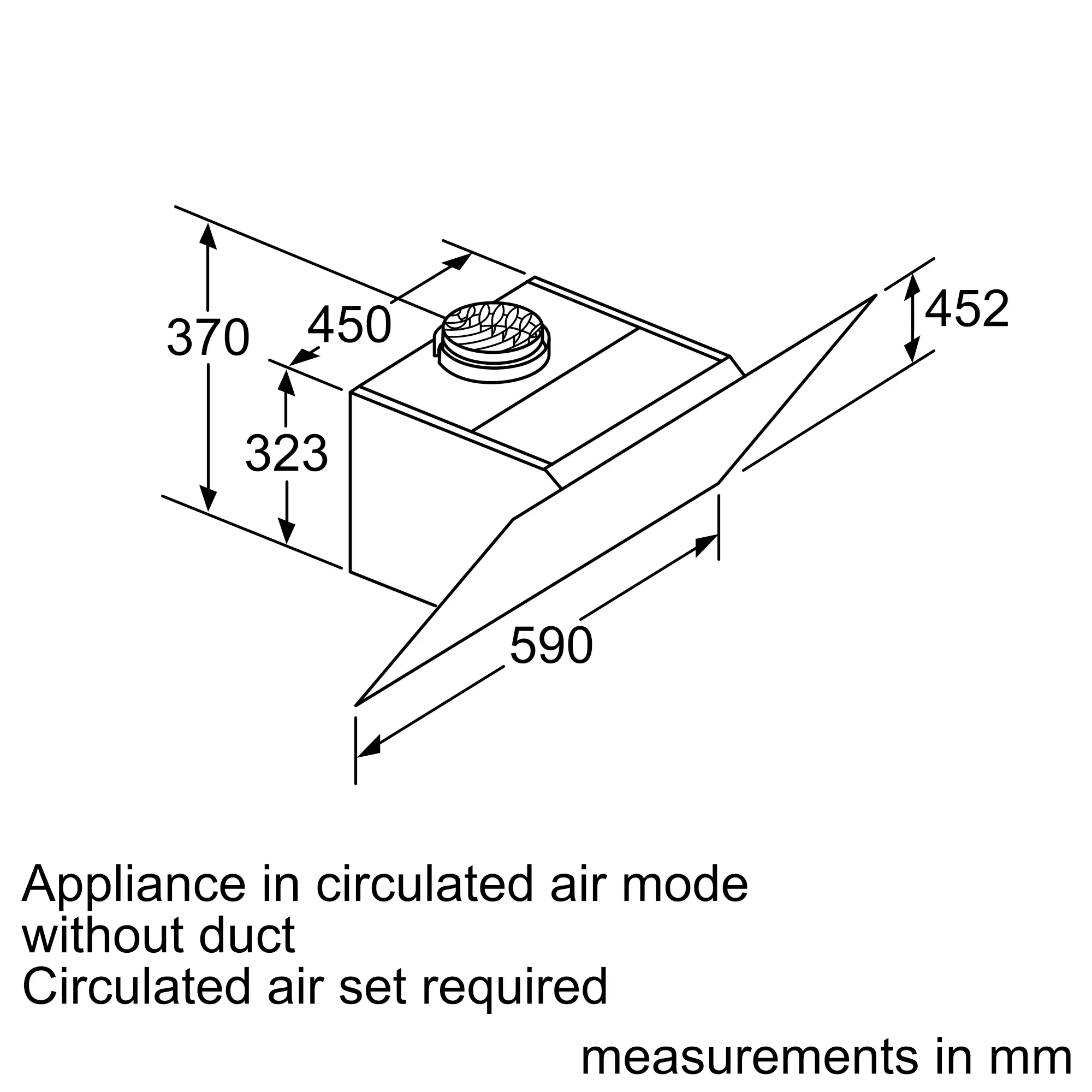

  • Dimensions recirculating, chimless (HxWxD): 452 mm x 590 x 499 mm
  • Dimensions recirculating with CleanAir module (HxWxD):
    1118 x 590 x 499 mm - mounting with outer chimney
    1188-1458 x 590 x 499 mm - mounting with telescopic chimney
Technical information
General
Width (cm) 60 cm
Depth of the product 499 mm
Installation type Built-in
Operating Mode Convertible
Max. recirculation (m³/h) 380
Sound pressure max. normal 43
Type of control setting and signalling devices LED, touch control
Energy Efficiency Class A
Total annual energy consumption 52.5
Connectivity
Home Connect
Construction type
Diameter of air outlet (mm) 150 / 120 mm
Color body Black
Color chimney Stainless steel
Grease filter material Washable aluminium
Grease filter type Kassette
Installation typology Wall-mounted
Material body Glass, Lacquered
Material chimney Stainless steel
Number of motors 1
Operating Mode Convertible
Typology Chimney
Connection
Connection Rating (W) 263 W
Length electrical supply cord (cm) 130 cm
Frequency (Hz) 60; 50 Hz
Total power of the motors (W) 260 W
Voltage (V) 220-240 V

* In accordance with the EU-Regulation No 65/2014

Accessories

Reviews

User manuals

You can access and download user manuals and other documentation about your Siemens home appliance online.

Currently there are no documents available.

Currently there are no documents available.

Currently there are no documents available.

Deconstruction manual

Information for professionals relevant for disassembly and dismantling according to the EU ecodesign regulations for vacuum cleaners, range hoods, ovens, hobs and water heaters (EU) No 666/2013, (EU) No 66/2014 and (EU) No 814/2013

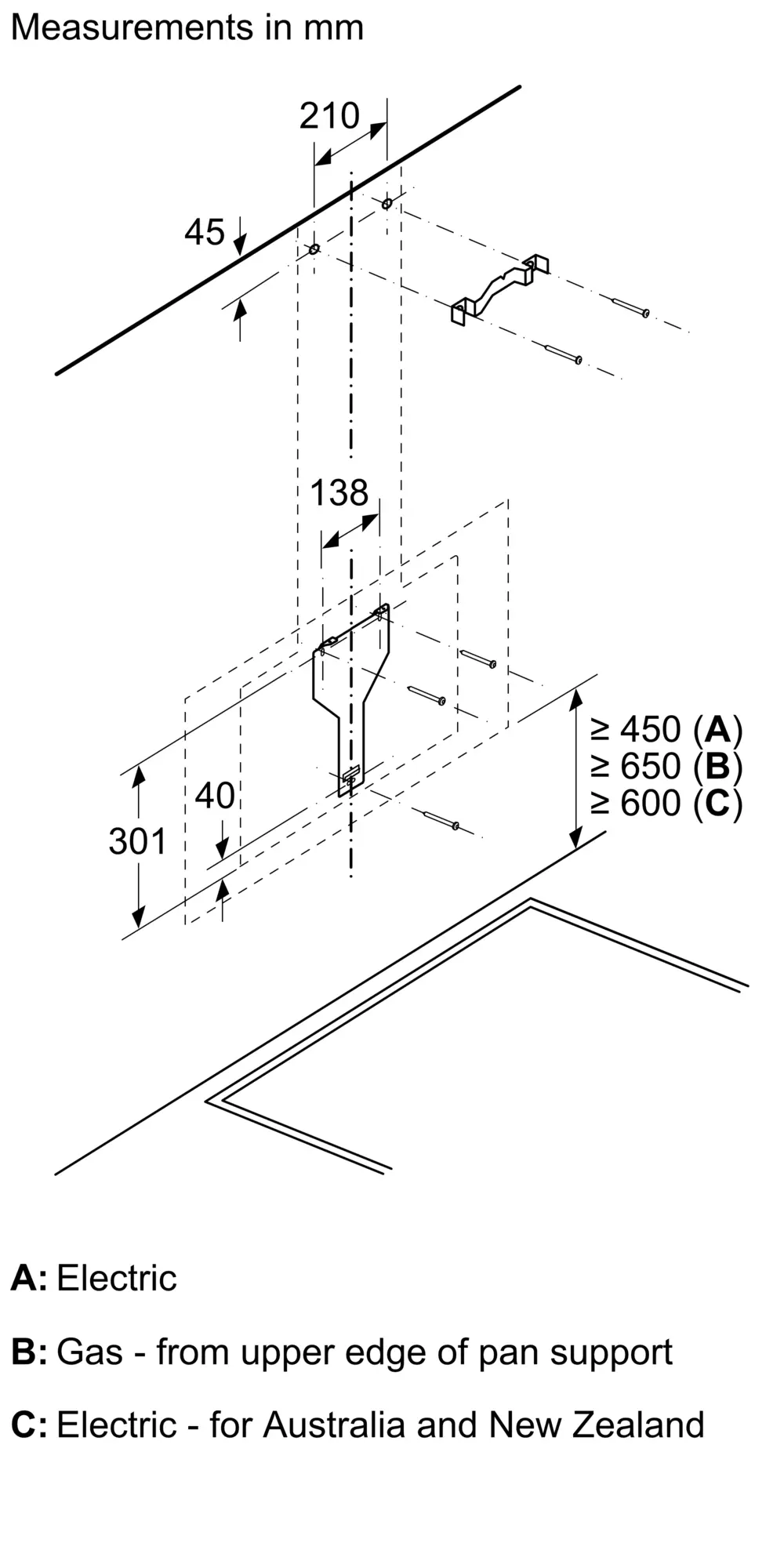

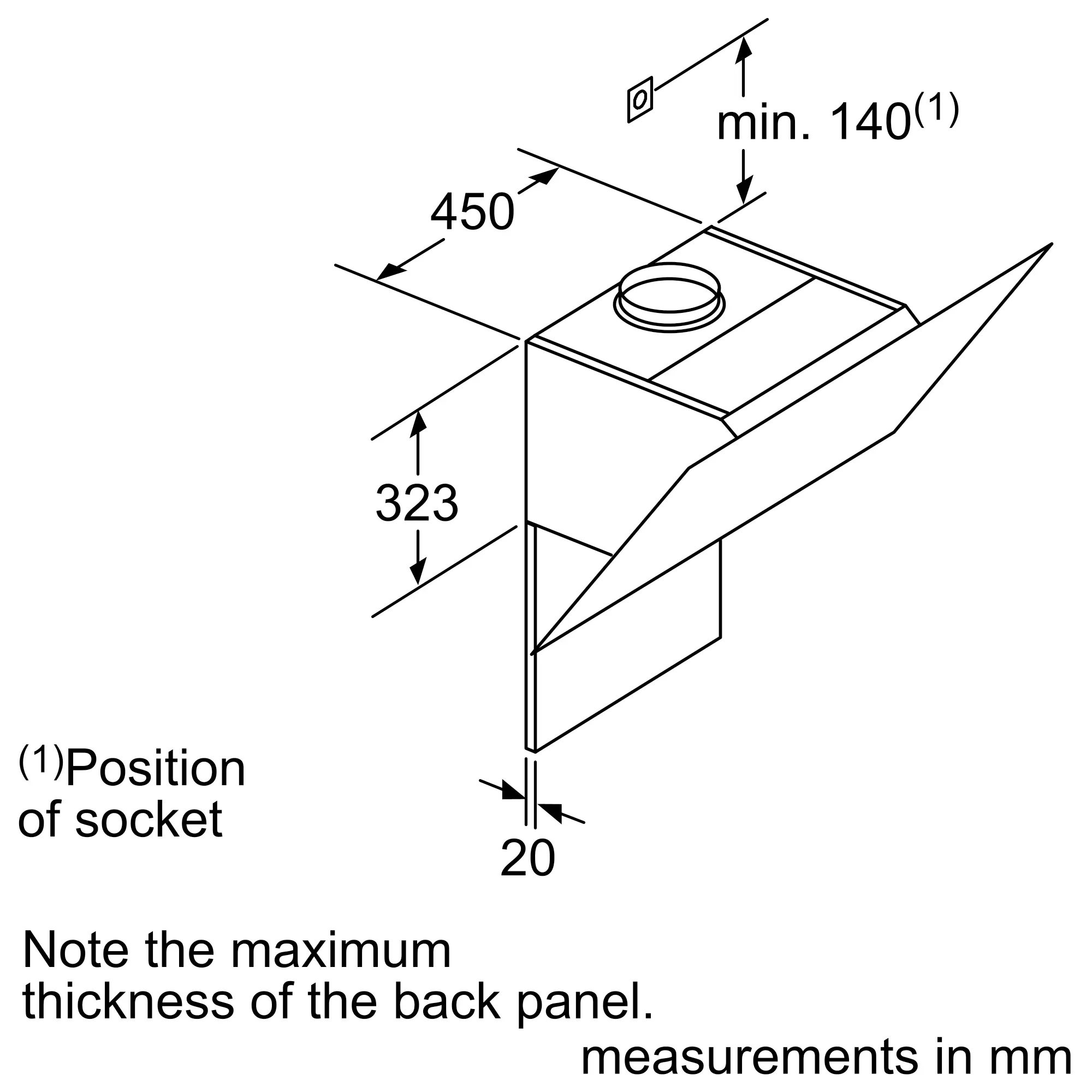

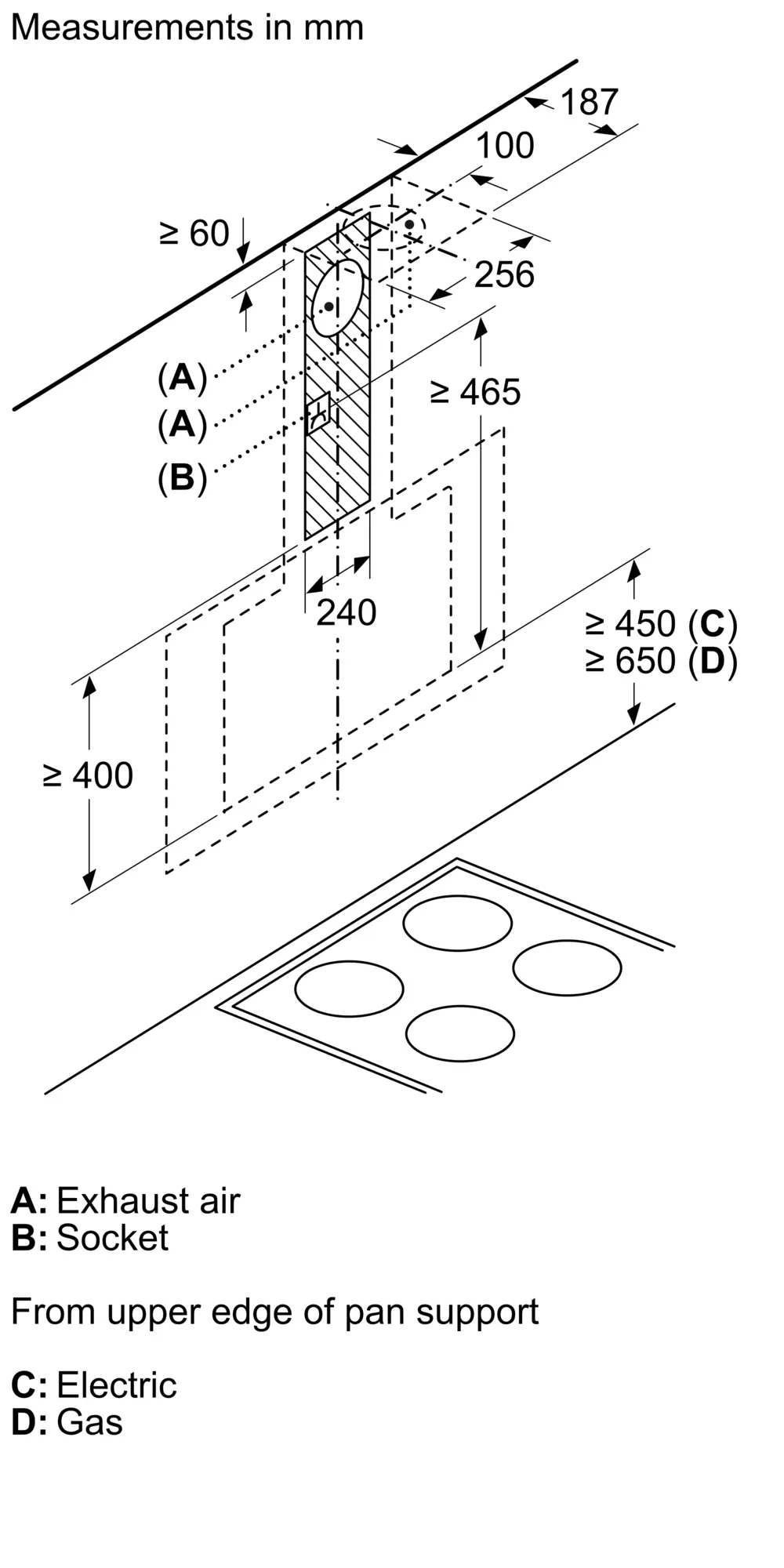

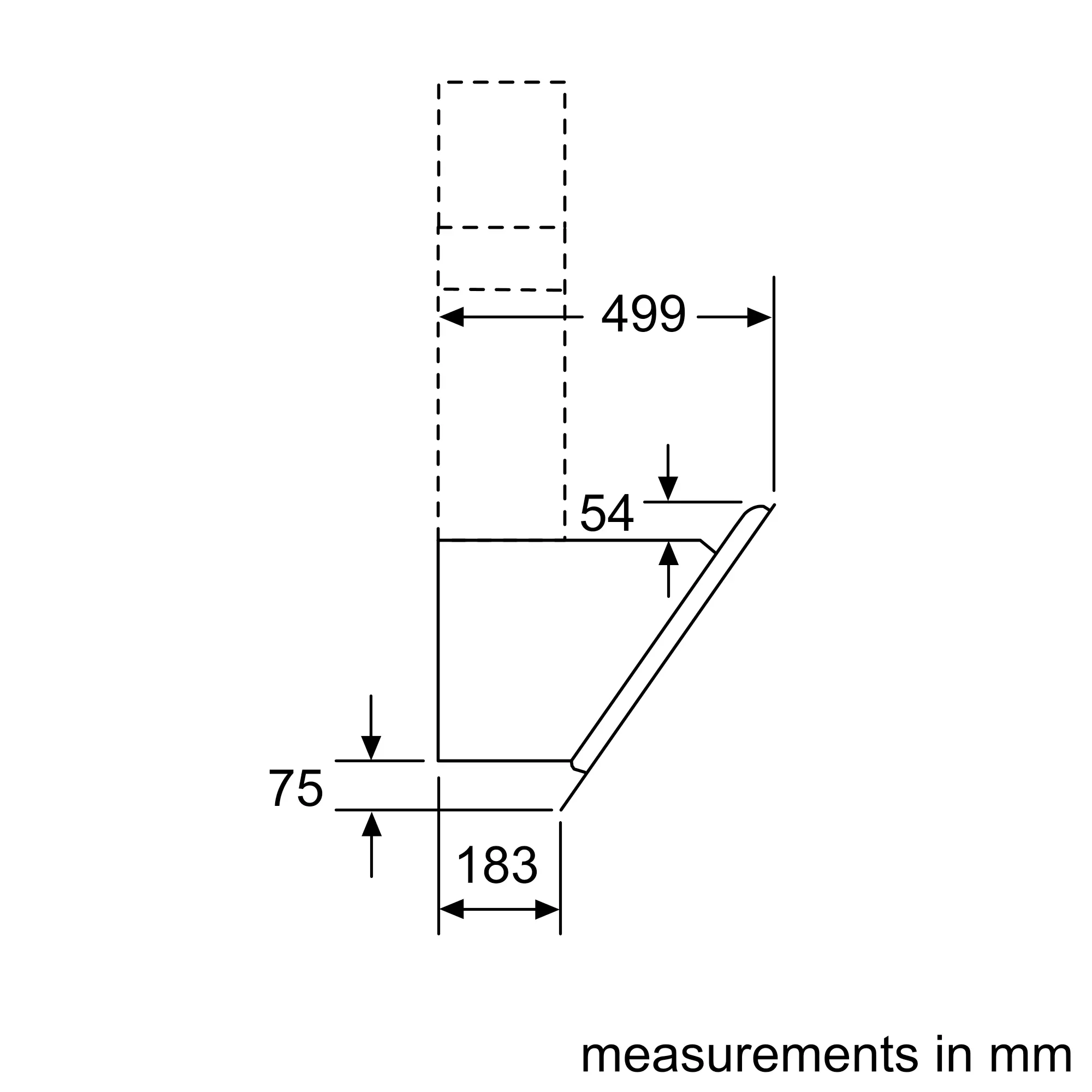

Line drawings
