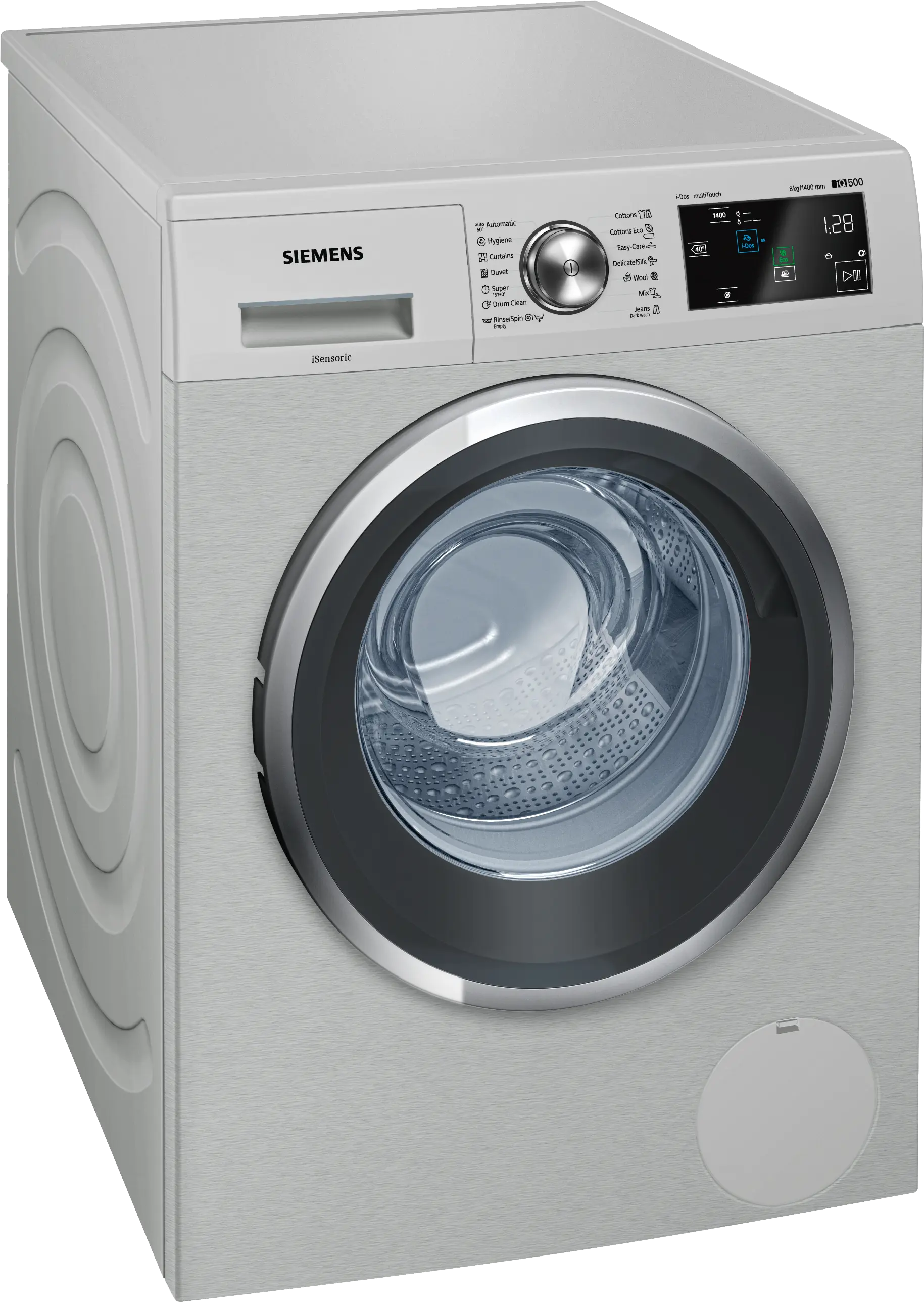

iQ500 EcoSilence Drive 8kg, i-Dos

WM14T67XZA


iSensoric Washing Machine with intelligent i-Dos automatic dosage and multiTouch LED Display.

Highlights

Measure precisely – easier than ever: i-Dos.

Easier than ever before because the first integrated precision dispensing system determines exactly how much detergent and fabric softener your laundry needs. This depends on different factors such as the type of textiles, load size, water hardness and degree of soiling. It will efficiently calculate the dosage down to the last millilitre – to ensure even better fabric care and first-class washing results. Incorrect dosage not only leads to poor washing results and damages the fabric, but it also increases water and energy consumption. The new iQ 800 with i-Dos uses only as much detergent, water and energy as is actually necessary.

Additional information

Engine power/Consumption
  • Capacity: 8 kg
  • Energy Efficiency Class: A+++ --30%
  • Energy consumption :137 kWh per year, based on 220 standard washing cycles
Programmes
  • Special programmes: Easy Care Dark, quick wash/mixture, AllergyPlus / Hygiene, Super 15 min / Super 30 min, Duvet, Automatic Intensive, wool, delicates/silk
Options
  • i-Dos: automatic dosing of liquid detergent and softener
  • varioPerfect: time- or energy optimized programs with perfect wash performance
  • Touch control buttons: Temperature Selection, Spin speed reduction, Prewash, EcoPerfect, SpeedPerfect, i-DOS 1, i-DOS 2 und 24 h Time Delay
Comfort and Safety
  • Reload Function: Stop the already running washing machine to add any forgotten items of laundry to the drum.
  • XXL Drum volume: 63 l
  • waveDrum: for highly effective and extremely gentle laundry care
  • DrumClean with reminder function
  • AntiVibration
  • Recommended Load
  • Large touch-LED-display for programme status indication, temperature selection, max. spin speed, remaining time and 24 h end time delay, load recommendation and consumption indication
  • Foam detection system
  • Child Lock
General Information
  • Dimensions (H x W x D): 84.8 x 59.8 x 59 cm
Technical information
General
Dimensions of the product (mm) 848 x 598 x 590 mm
Capacity (kg) 8.0 kg
Spin Speed (rpm) 1,379 rpm
Energy Efficiency Class A+++
Energy consumption annual (kWh/annum) - NEW (2010/30/EC) 137
List of programmes Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
Cottons programme Eco, Standard cold - 90°C
Easy-care programme Standard cold - 60°C
Wash optimization AllergyPlus / Hygiene, curtains 30°C, dark laundry, Duvet, Easy iron, EcoPerfect, i-DOS 1, i-DOS 2, Prewash, quick wash/mixture, rinse hold, SpeedPerfect, Spin speed reduction, Start / Reload, Super 15 min / Super 30 min, Temperature selection, Time delay
Digital countdown indicator
Start delay options Continuous
Noise level (dB) - Washing 49
Noise level (dB) - Spinning 74
Door opening Left
Water protection system Multiple water protection
Hot & cold water intake
Interior light
Removable top
Length electrical supply cord (cm) 160 cm
Power consumption in off-mode (W) - NEW (2010/30/EC) 0.12 W
Power consumption in left-on mode (W) - NEW (2010/30/EC) 0.43 W
Duration of the left-on mode - NEW (2012/30/EC) (min) 15 min
Available languages display English, Symbols
Approval certificates CE, VDE
Connectivity
Home Connect
Connection
Length electrical supply cord (cm) 160 cm
Frequency (Hz) 50 Hz
Hot & cold water intake
Plug type South Africa plug
Construction type
Color / Material panel silver inox
Installation type Free-standing
Door opening Left
Installation typology Freestanding
Type Front loader
Removable top
Tub material Plastic
Wheels
Size and weight
Depth with open door 90 degree (mm) 1,063 mm
Dimensions of the product (mm) 848 x 598 x 590 mm
Drum volume (l) 63 l
Height-adjustable by 1.20 cm
Net weight (kg) 71.0 kg
Comfort
Loading sensor
Degree of dirtiness recognition
Digital countdown indicator
Noise level (dB) - Spinning 74
Noise level (dB) - Washing 49
Turbidity sensor
Start delay options Continuous
Self adjusting water level to load
Programmes
Cold wash option
Electronic After-sales Service
List of programmes Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
Pre-wash available
Cottons programme Eco, Standard cold - 90°C
Easy-care programme Standard cold - 60°C
Separate temperature control options Steps
Wash optimization AllergyPlus / Hygiene, curtains 30°C, dark laundry, Duvet, Easy iron, EcoPerfect, i-DOS 1, i-DOS 2, Prewash, quick wash/mixture, rinse hold, SpeedPerfect, Spin speed reduction, Start / Reload, Super 15 min / Super 30 min, Temperature selection, Time delay
Water plus
Spinning
Spin speed options Variable
Skip spin
Safety
Balance control
Foam control
Water protection system Multiple water protection
Consumption values
Energy consumption kWh 30C delicates (kWh) 0.19 kWh
Energy consumption kWh 30C woollens (kWh) 0.19 kWh
Energy consumption kWh 40C colour (kWh) 1.05 kWh
Energy consumption kWh 40C easy care (kWh) 0.71 kWh
Energy consumption kWh 95C cotton (kWh) 2.20 kWh
