DH24400

Product is no longer available

More information and services related to this product

Specifications

CLICKFIX plus Assembly system saves time and money
Back plate and heating block can be separated using a handle for assembly
Back plate shortened for generous assembly space
Extremely flexible connection pipes for easy connection to water mains
Wall mounting with 25 mm variable depth central fastening screw
Suitable for Copper, Plastic pipes acc. DVGW, Steel
Easy installation in place of old systems with power supply connection above and below possible
Fast heating up of water
Operation instructions safely stored in the information flap
Fixing materialWall plugs, Screws
Low switch-on flow rate of 5 l/min
Low switch on pressure of 0.9 bar
Rating selector switch e / II , 16 KW / 24 KW
Automatic flow at half power
protection type IP25
Maximum initial temperature up to 20 °C

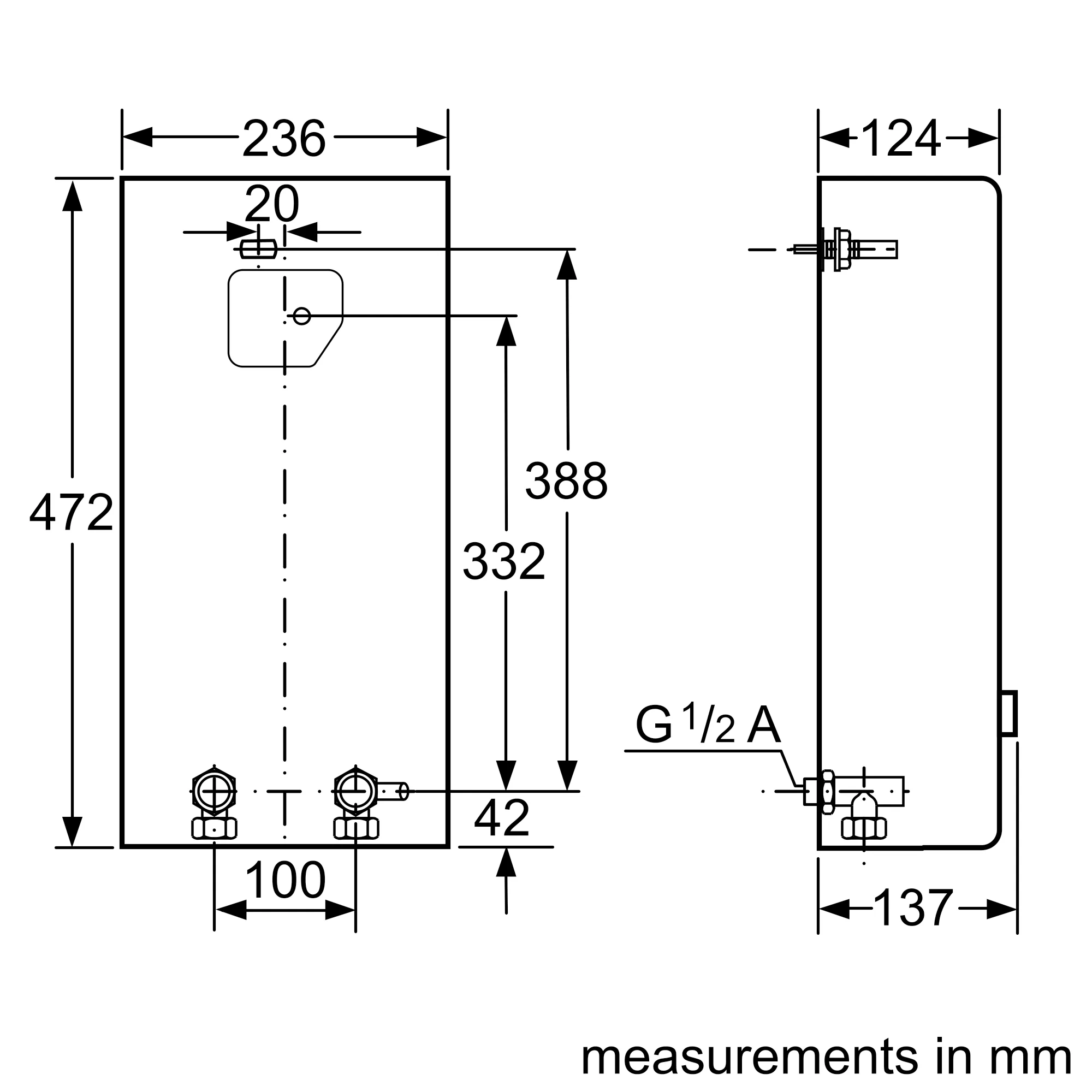

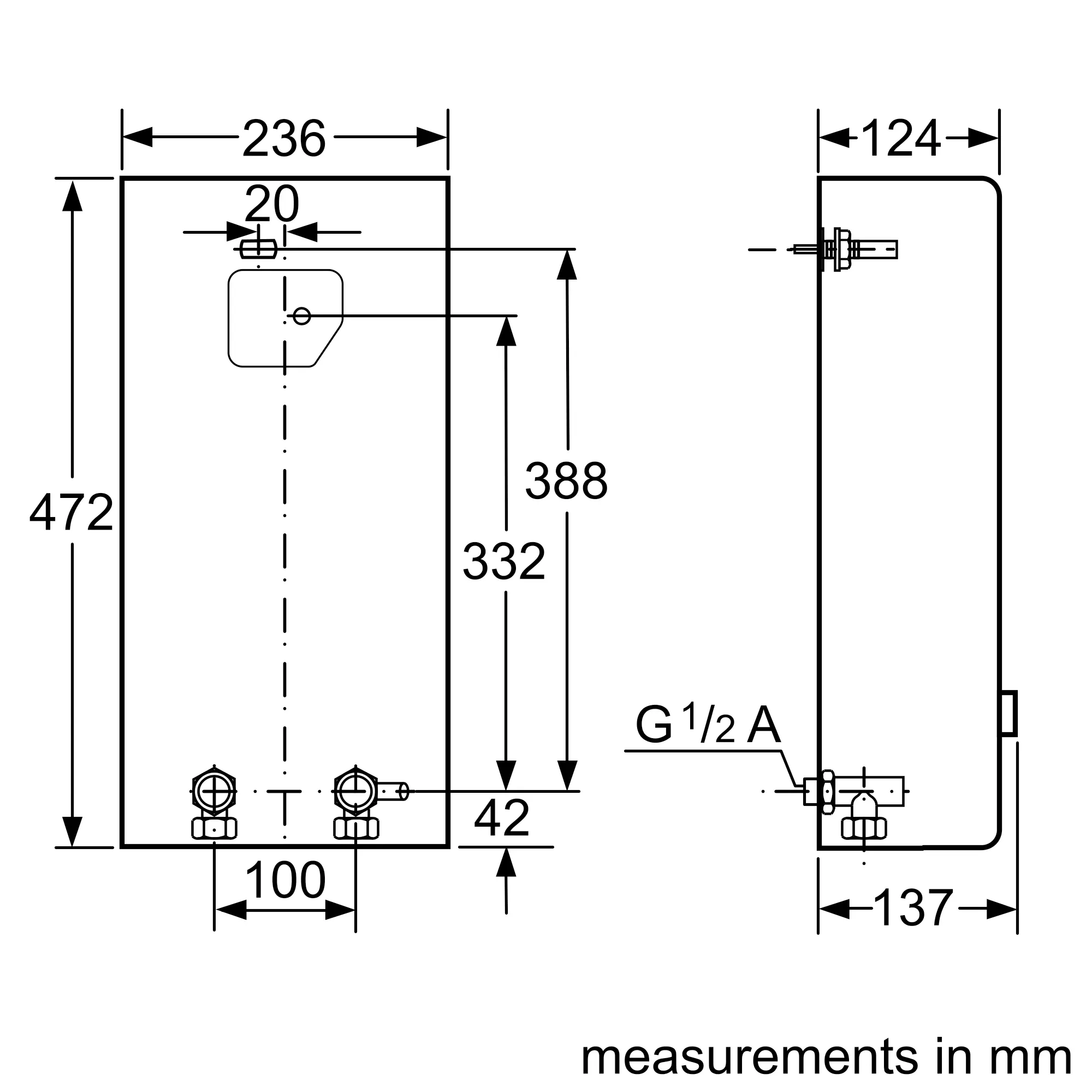

Dimensions (H x W x D): 47.2 x 23.6 x 12.4 cm
Hot water rating (38 °C/60 °C) 13.2/7.2 l/min
Electrical connection 3~/PE, 400 V,24 kW Fuse 35/40 A
Special accessories: BZ45K23, BZ45L21, BZ45U21
