Technical Overview
Dimensions
198x802x522 mm
Cooktop type
Induction with hood
Number of cooking zones
4
Frame type
Facet
Ventilation type
Convertible
Maximum output air extraction
551 m³/h
Sound power at max. speed (2010/30/EC)
70 dB
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Specifications
Colour of appliance
Black
Type of appliance width
80 cm
Number of cooking zones
4
Dimensions of the heating elements
2 x (21,95 x 21,0 cm), 1 x (14,5 cm Ø), 1 x (18,0 cm Ø)
Power of the heating elements
1 x 1.4 (2.2) kW, 1 x 1.8 (3.1) kW, 2 x 2.2 (3.7) kW
Frame type
Facet
Number of radiant plates
0
Number of induction plates
4
heating with booster
All

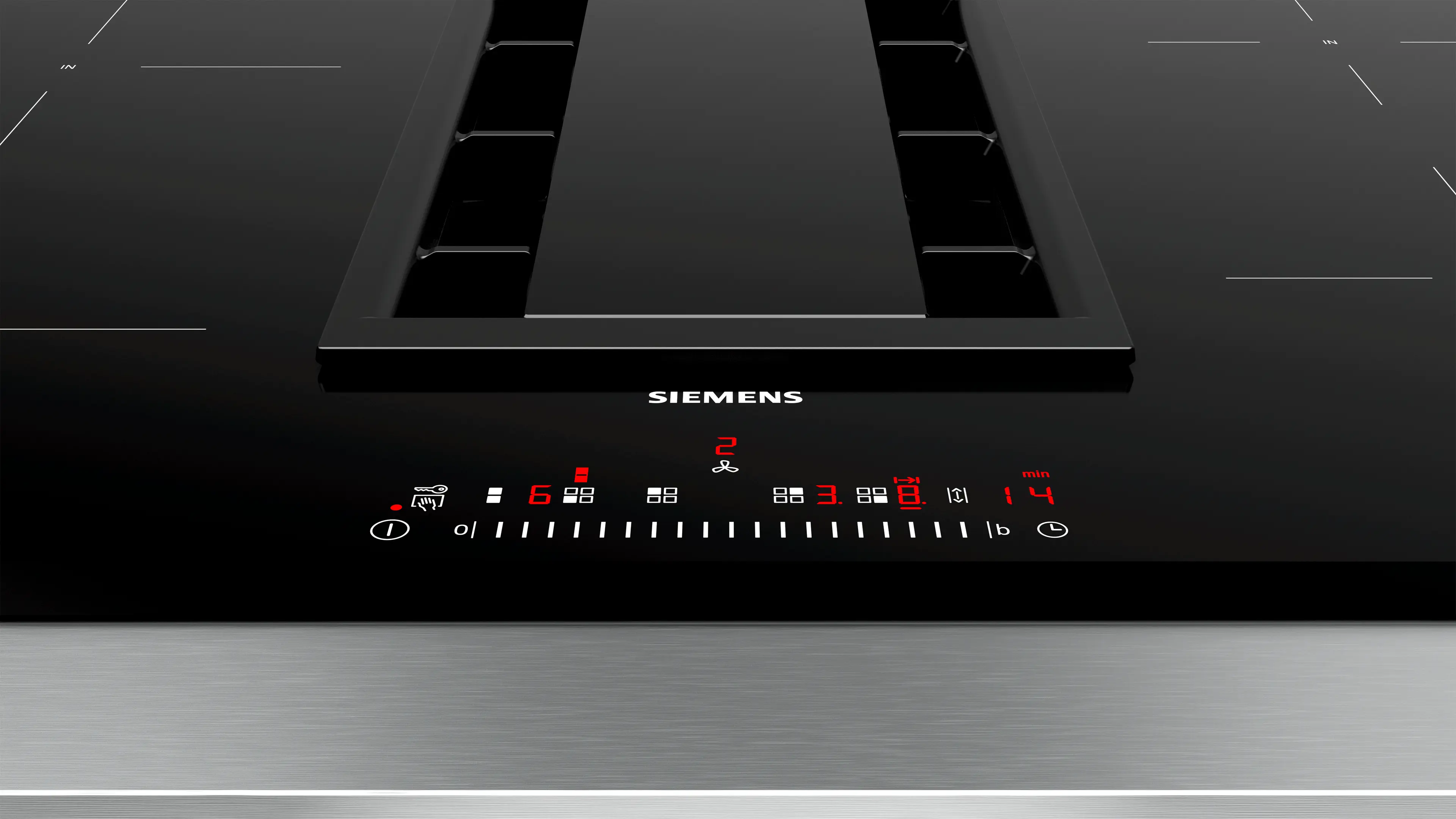

Controls
TouchSlider (Timer), front
Ventilation type
Convertible
Maximum output air extraction
551 m³/h
Boost position air extraction
698 m³/h
Maximum output recirculating air
557 m³/h
Boost position output recirculating
630.0 m³/h
Sound power at max. speed (2010/30/EC)
70 dB
Sound power boost (2010/30/EC)
75 dB
Noise level
70 dB(A) re 1 pW
Energy consumption of hob
178.3 Wh/kg
Dimensions
198x802x522 mm
Dimensions of the packed product (HxWxD)
330 x 760 x 940 mm

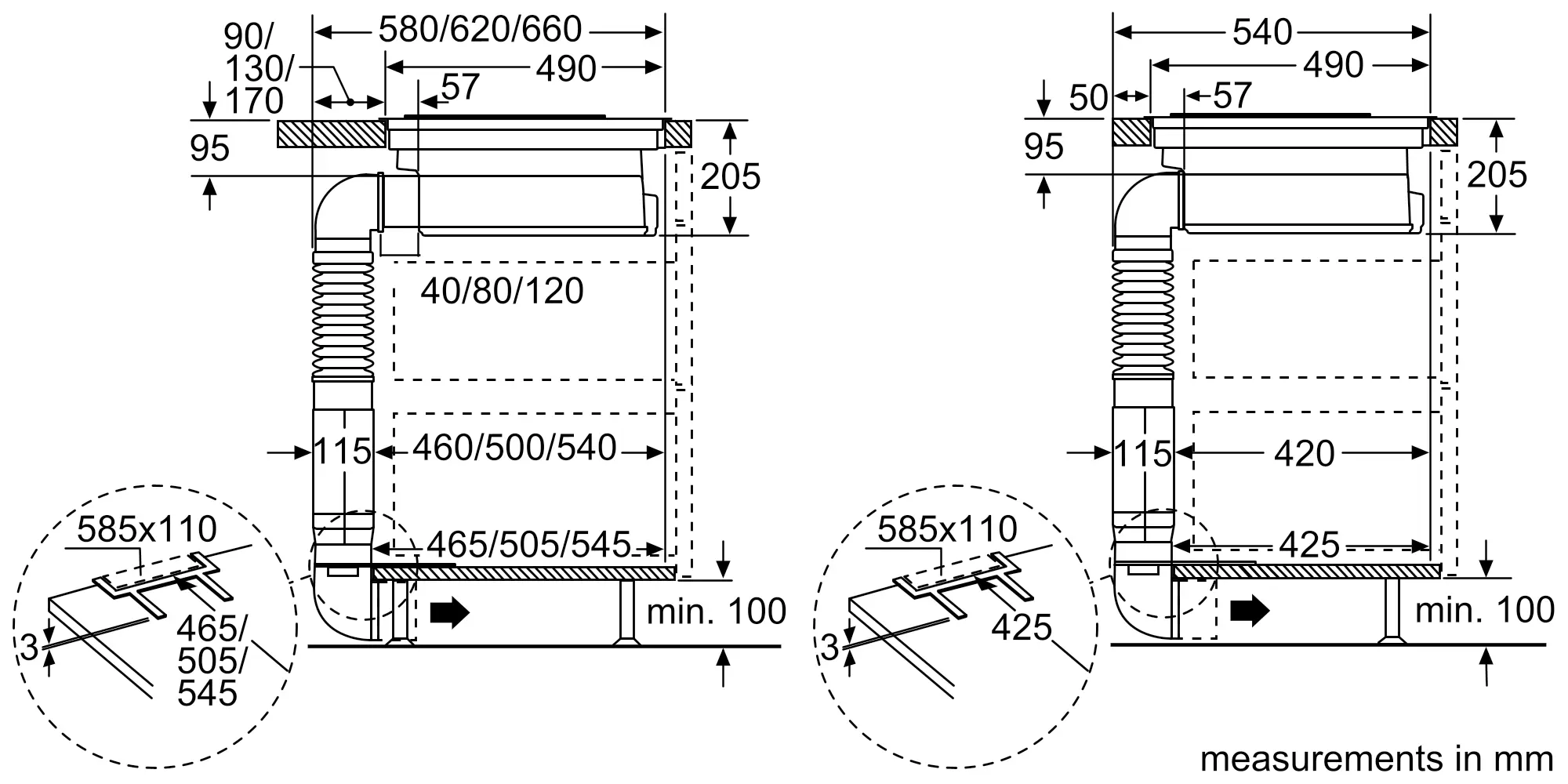

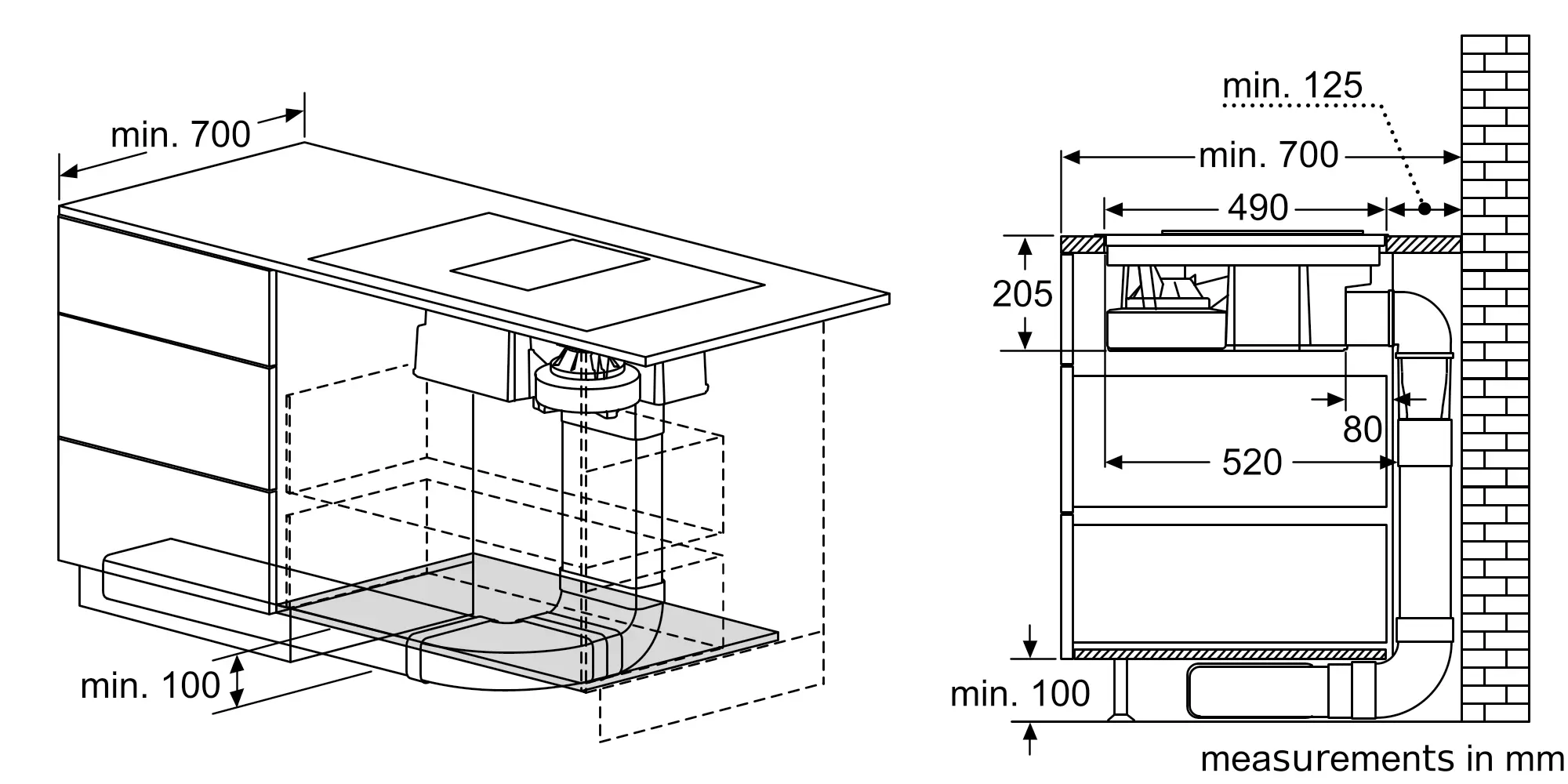

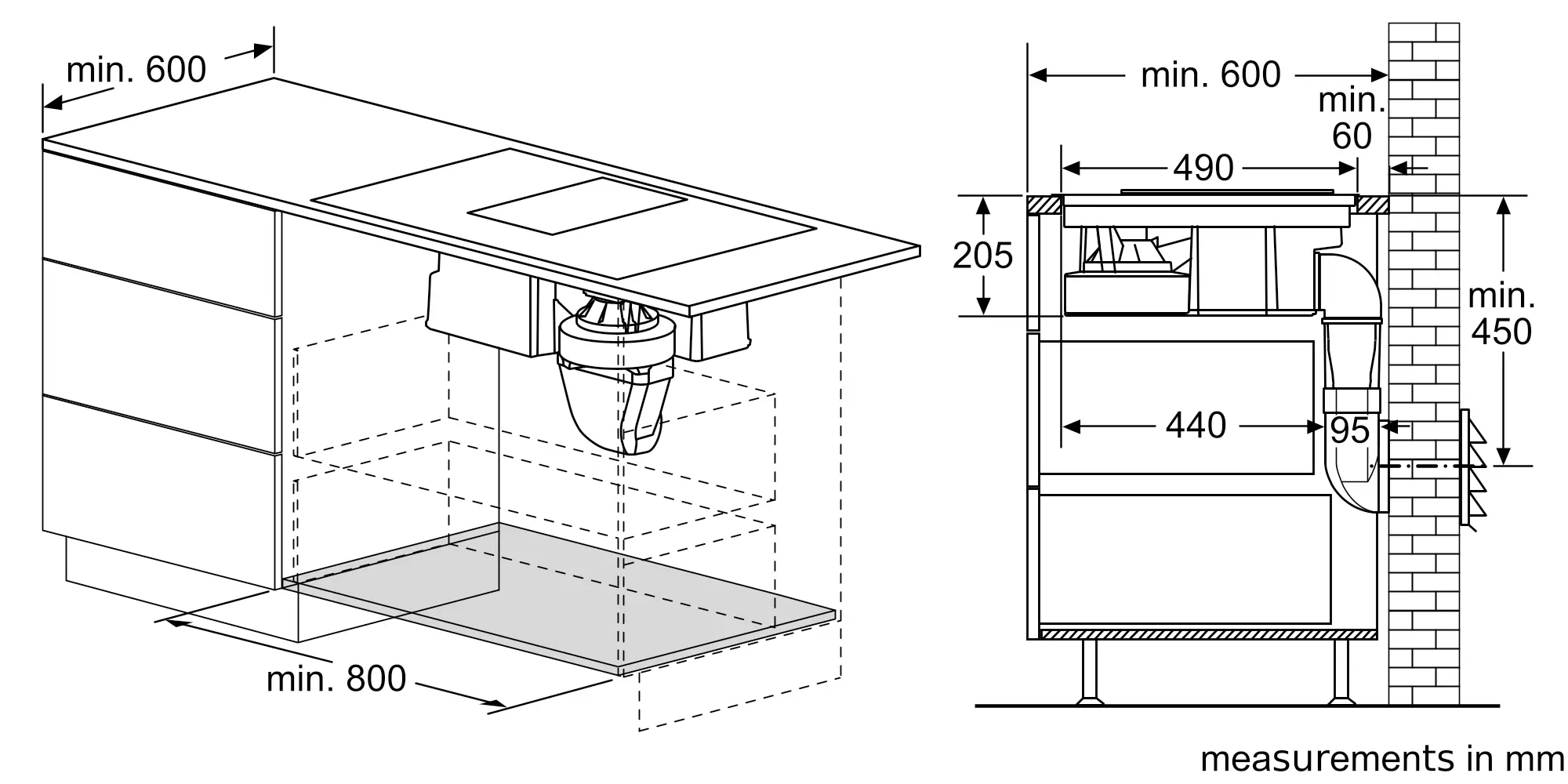

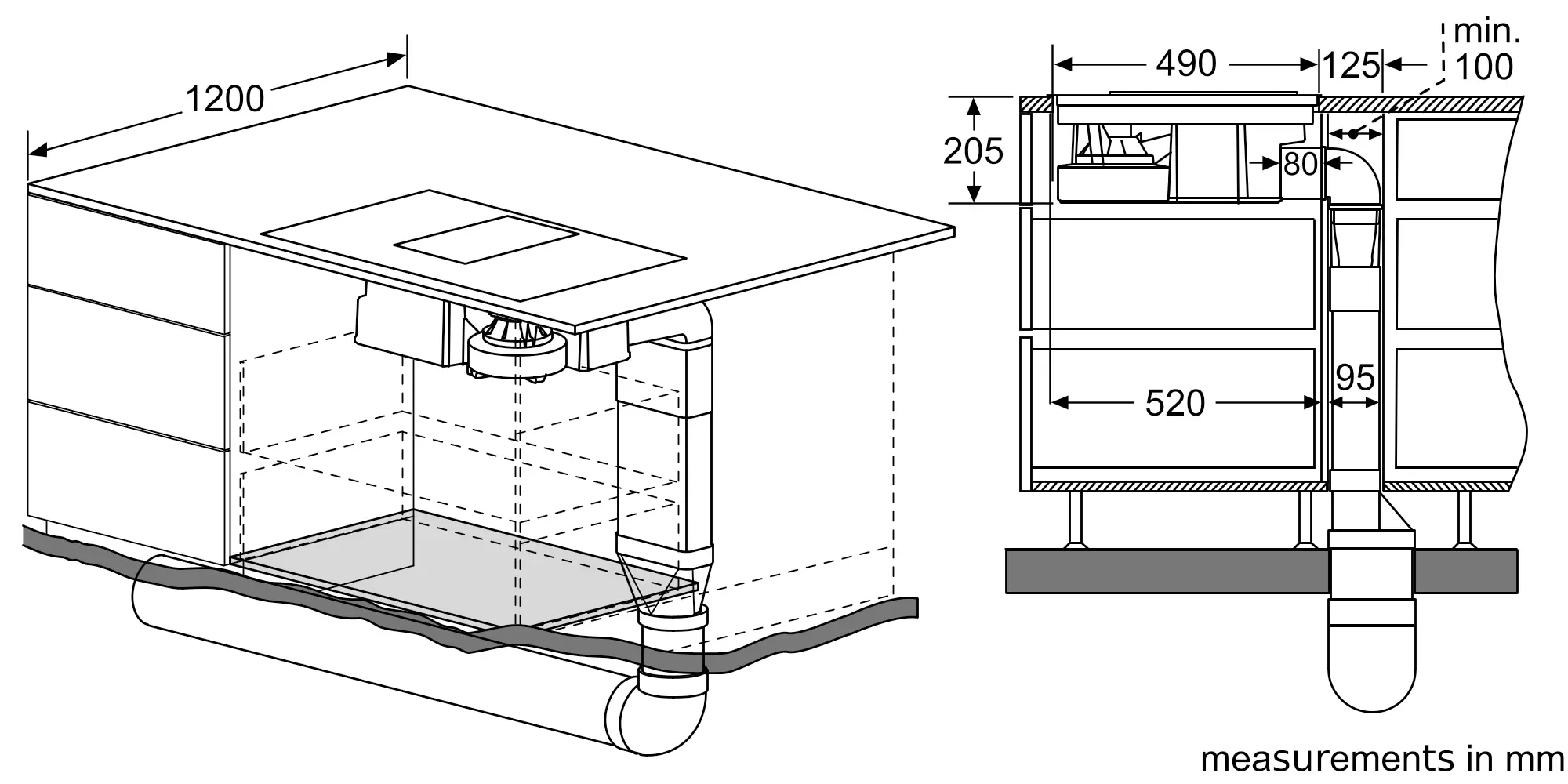

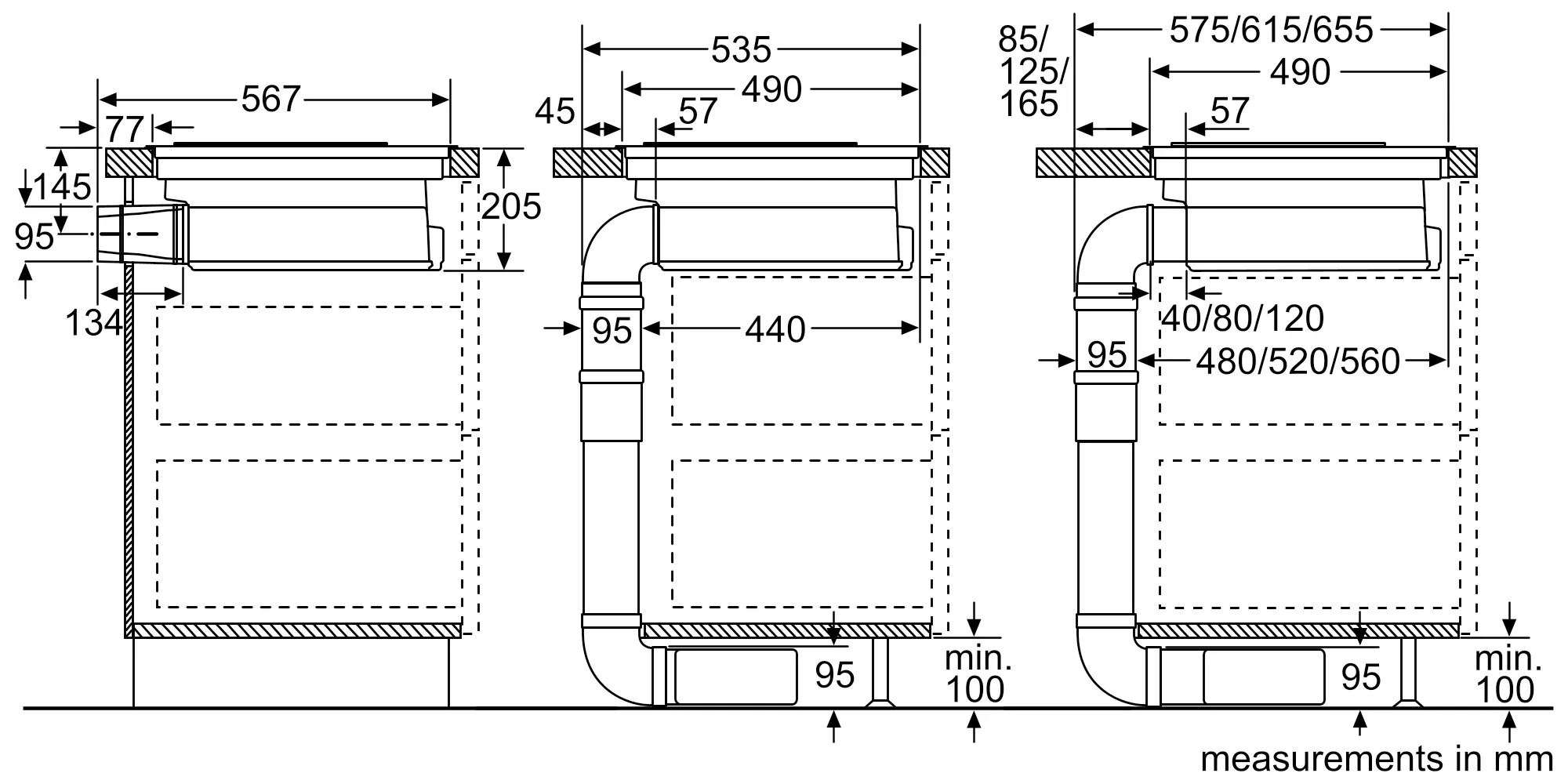

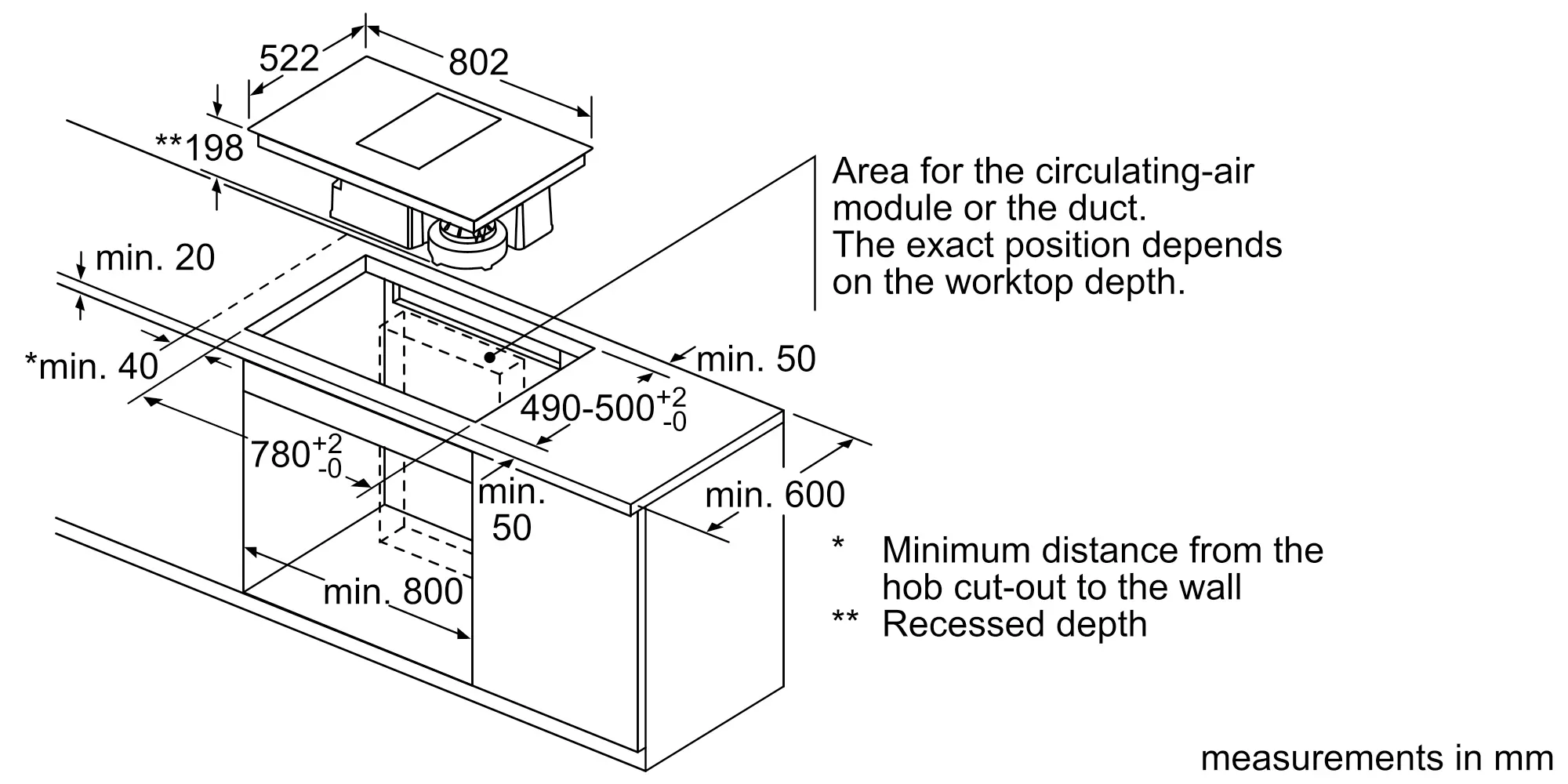

Minimum height for installation
490 mm
Maximum height for installation
500 mm
Minimum width for installation
780 mm
Maximum width for installation
780 mm
Depth for installation
198 mm
Appliance height above the worktop
6.0 mm
1 / 0
Connection Rating
6900 W
Nominal power
220-240 V
Length electrical supply cord
110.0 cm
Plug type
no plug (electrical connection by electrician)
Included user manuals
[DA, FI, NO, SV]
Type of control
touchControl
hotplate control settings
17 power levels
Cooking zone flexibility
Combi zone
powerBoost
Yes
Avoid scratches on glass ceramic with GlassProtect
No
activeLight Plus
No
fryingSensor Plus
No
Infrared cooking sensor
No
cookingSensor Plus ready (sensor available as additional purchase)
No
Powermove
Yes
Power Transfer
No
Quick Start
Yes
Keep warm function
No
Electronic timer
Yes
Timer
Switch-off timer (on appliance), Count-down timer (on appliance)
iQdrive
Yes
Boost position
Yes
Delay Shut off modes
Yes
Clean filter reminders
Yes
Number of speed settings
9-stage + intensive
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Power consumption standby/display off
0.5 W
Time auto-standby/displ. off
20.0 min
Safety device
Key Lock, childproof lock, Power management function, pan recognition, Safety time-switch-off
Residual heat indicator
Separate
