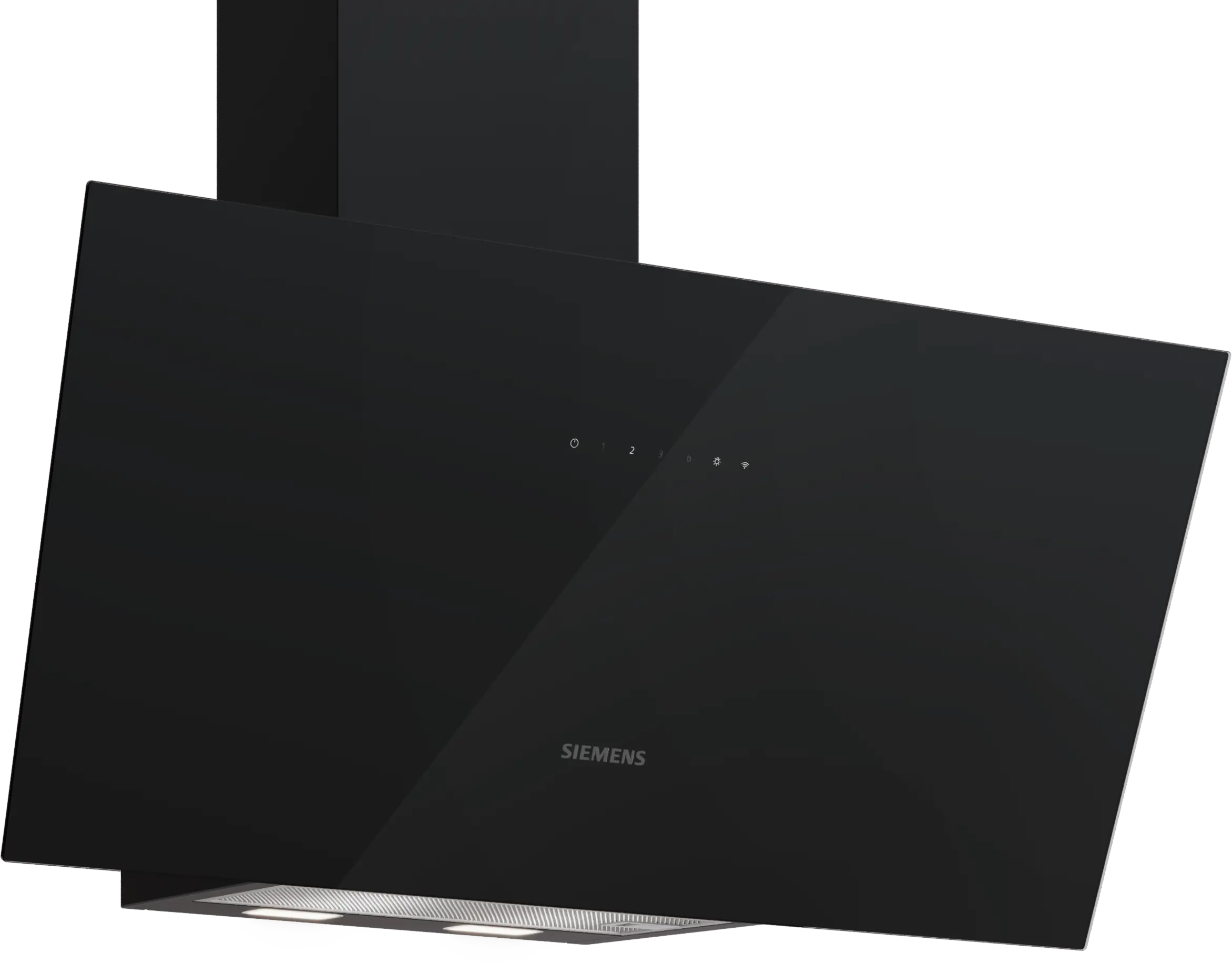

IQ500 Wall-mounted cooker hood 80 cm Clear glass black printed, BlackLC87KCN61B
LC87KCN61B
1 / 0
IQ500 Wall-mounted cooker hood 80 cm Clear glass black printed, BlackLC87KCN61B
LC87KCN61B
Datasheet
Find a local Dealer
Find a local dealer in your vicinity
IQ500 Wall-mounted cooker hood 80 cm Clear glass black printed, BlackLC87KCN61B
LC87KCN61B
Datasheet
Find a local Dealer
Find a local dealer in your vicinity
Technical Overview
Installation type
Wall-mounted
Type of appliance width
80 cm
Control your hood with your Home Connect hob
Yes
Noise level
56 dB(A) re 1 pW
climateControl sensor
No
Ventilation type
Convertible
Maximum output air extraction
431 m³/h
Boost position air extraction
768 m³/h
Awards
Specifications
Type of appliance width
80 cm
Color body
Black
Installation type
Wall-mounted
Ventilation type
Convertible
Total power of the motors
130 W

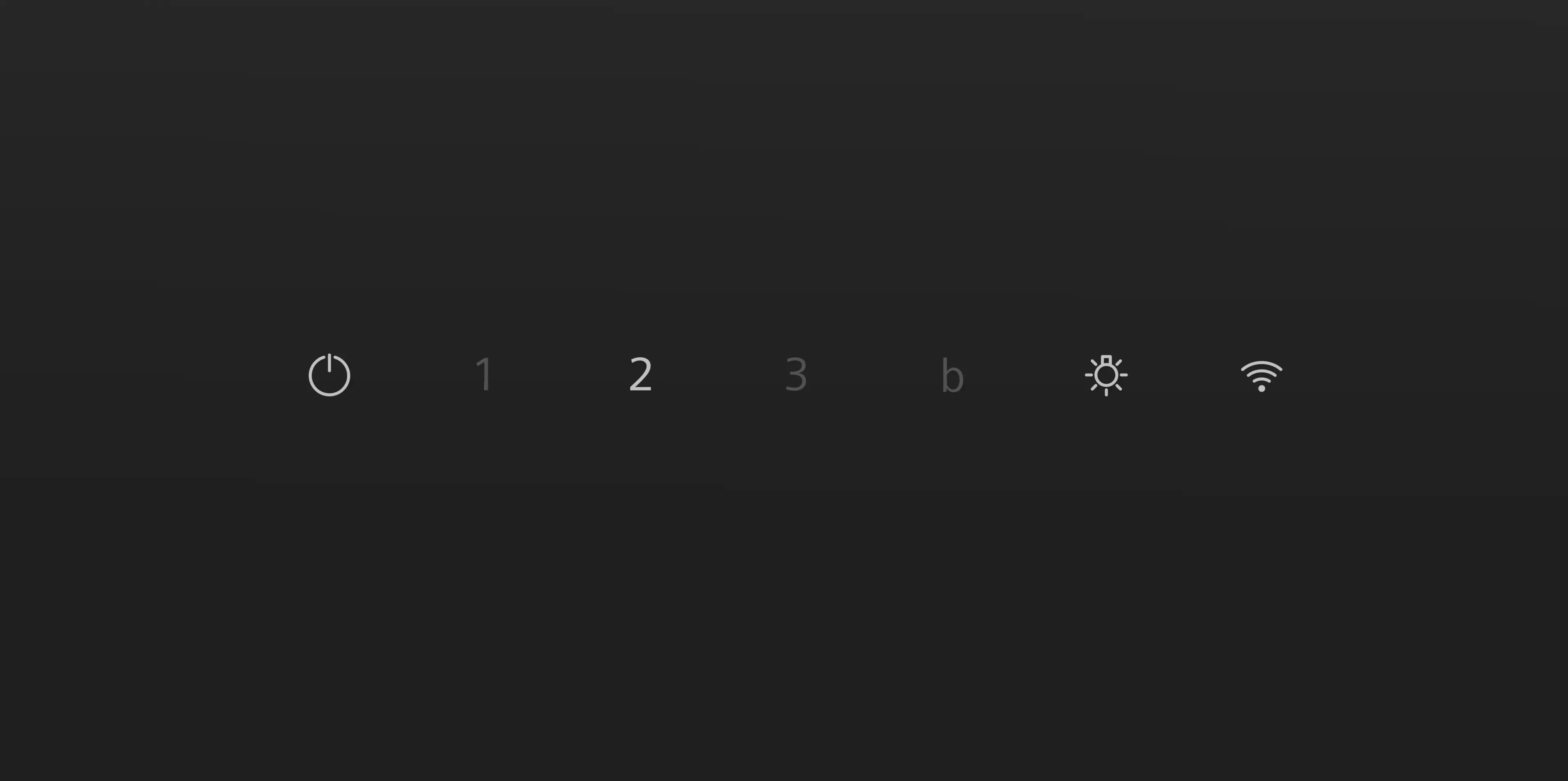

Controls
touch control,
Number of speed settings
3-stages + intensive setting
Maximum output air extraction
431 m³/h
Boost position air extraction
768 m³/h
Sound power at max. speed (2010/30/EC)
56 dB
Sound power boost (2010/30/EC)
68 dB
Maximum output recirculating air
438 m³/h
Boost position output recirculating
692 m³/h
Sound power at max. speed (recirculation)
63 dB
Sound power boost (recirculation)
75 dB

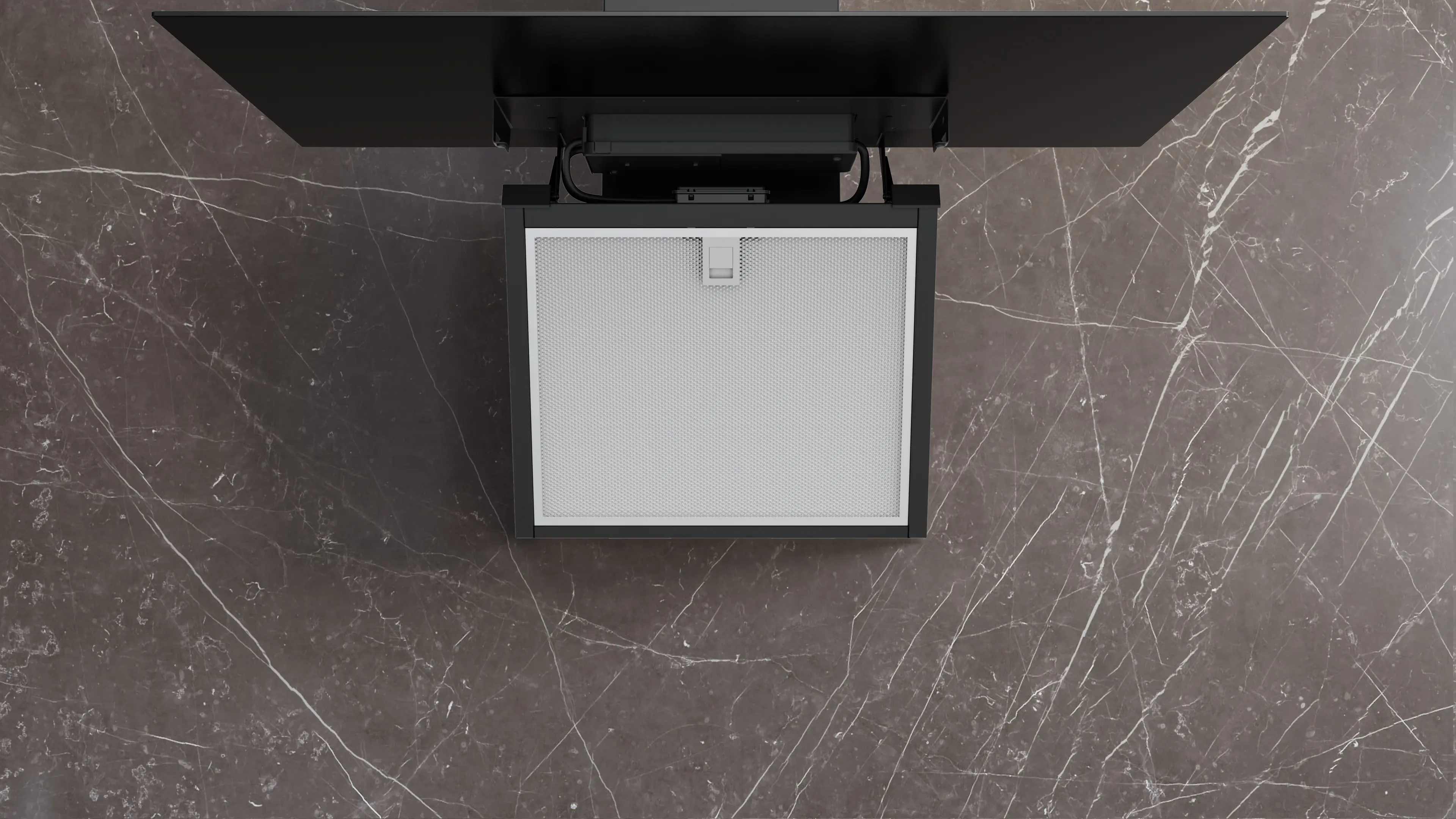

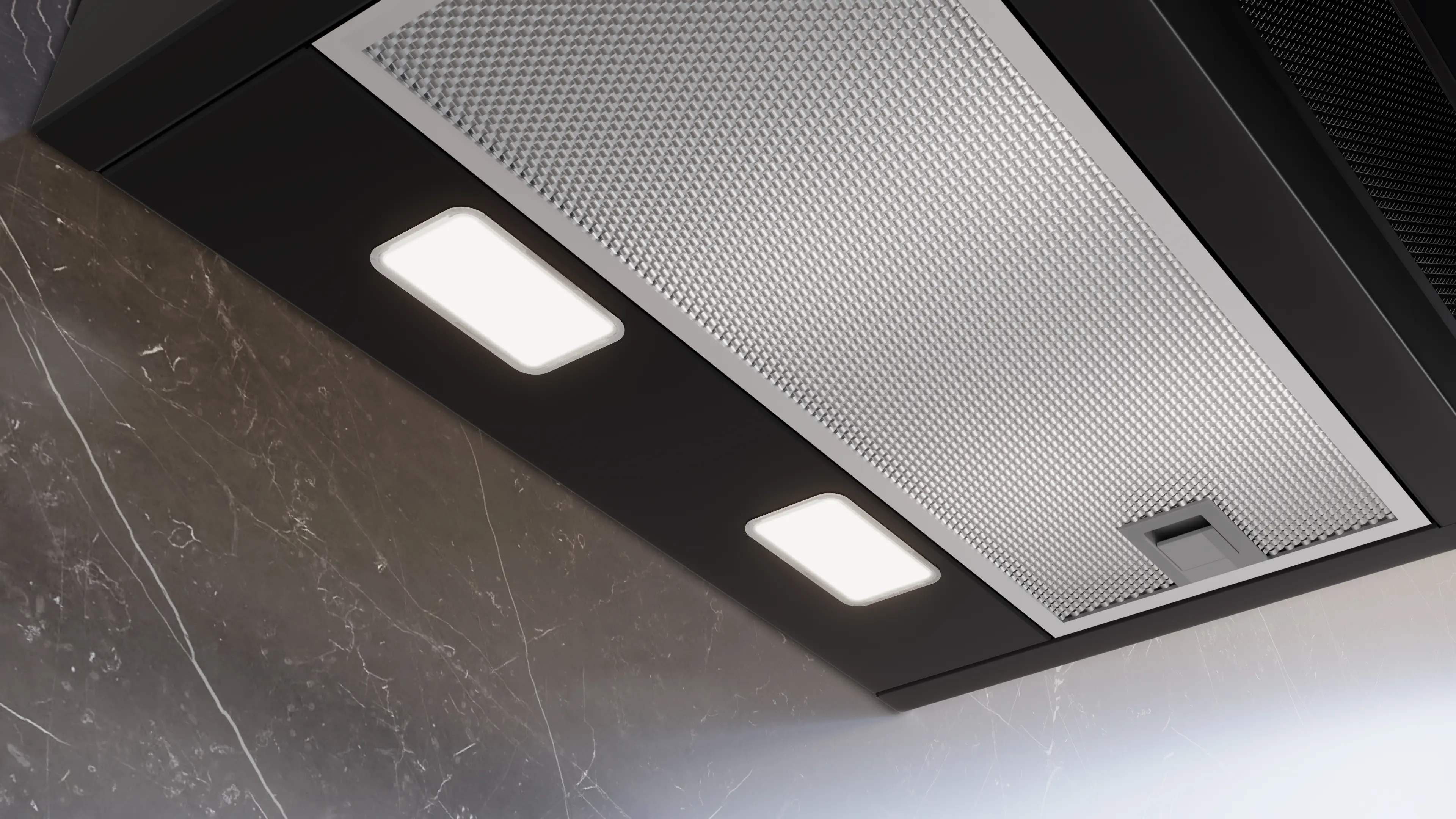

Grease filter material
Washable aluminium
Energy efficiency rating
A+
Total annual energy consumption
31.7 kWh/annum
Included user manuals
[EN]
Nominal power
220-240 V
Height of the appliance
320 mm
Width of the appliance
790 mm
Dimensions
433 mm
Dimensions of the packed product (HxWxD)
530x880x640 mm
Height of the chimney
445-660/480-695 mm

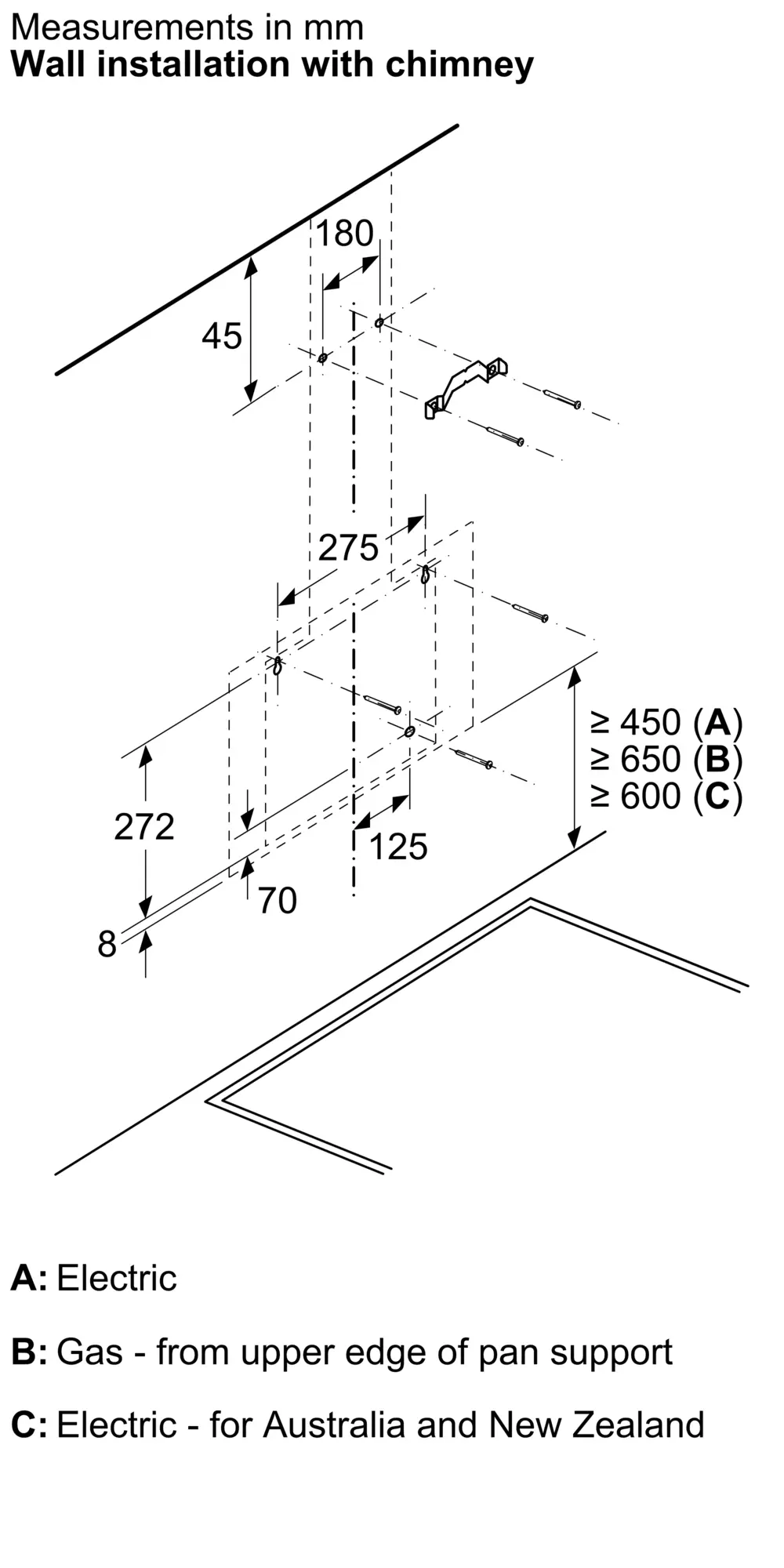

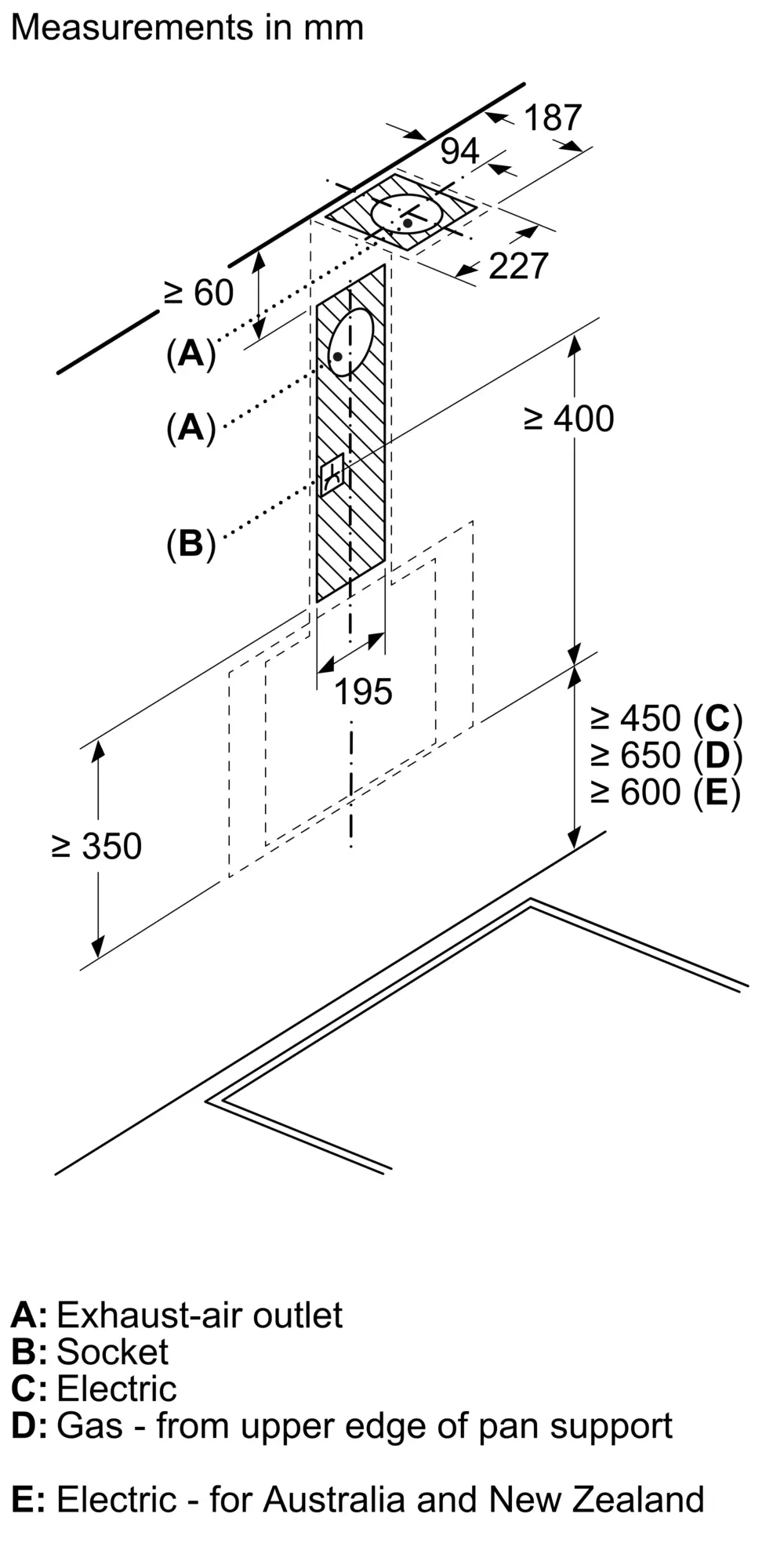

Minimum distance above an electric hob
450 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Weight
11.0 kg
Handle bar
Not applicable

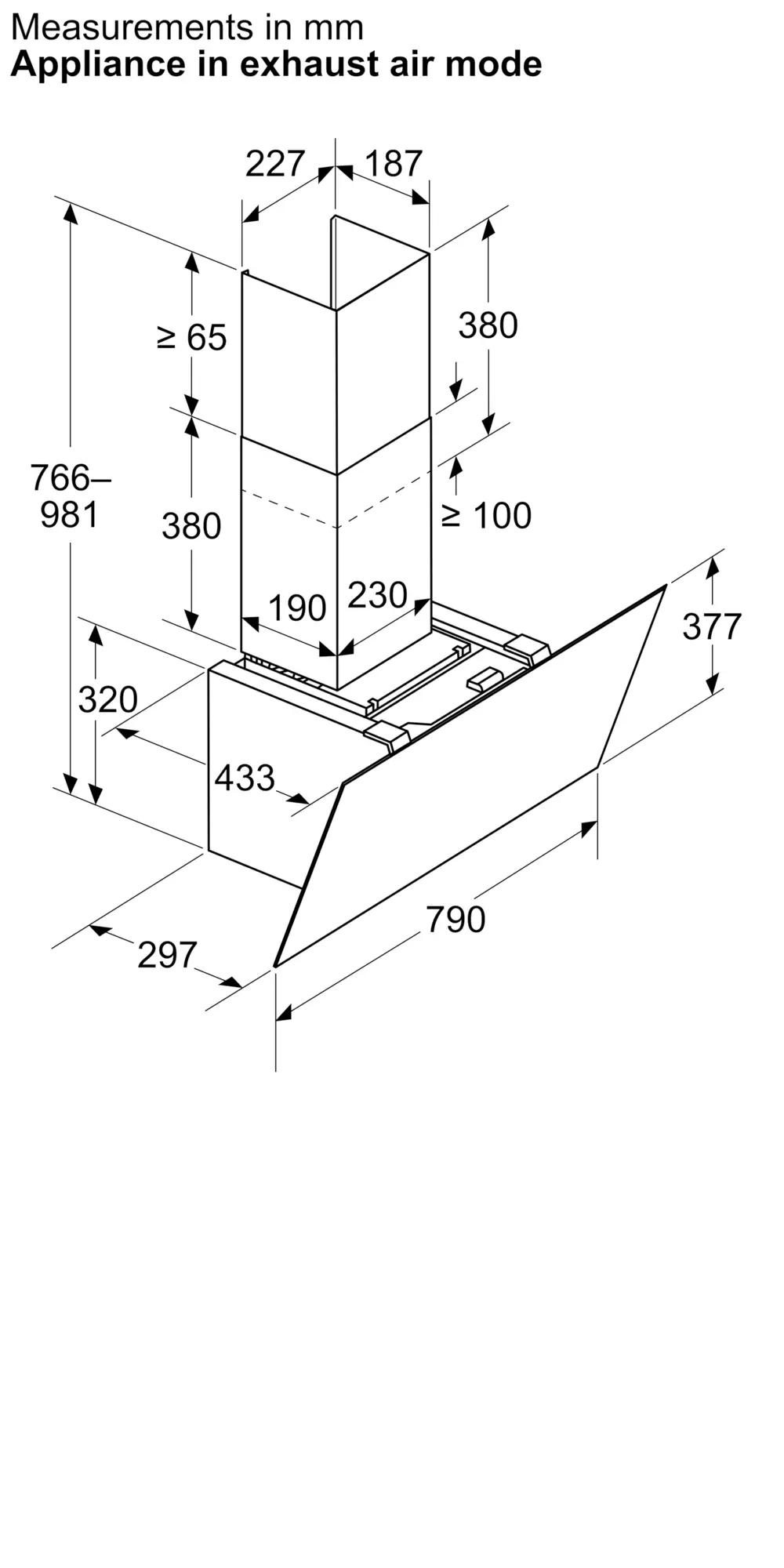

Appliance height exhaust air max
981 mm
Appliance height exhaust air min
766 mm

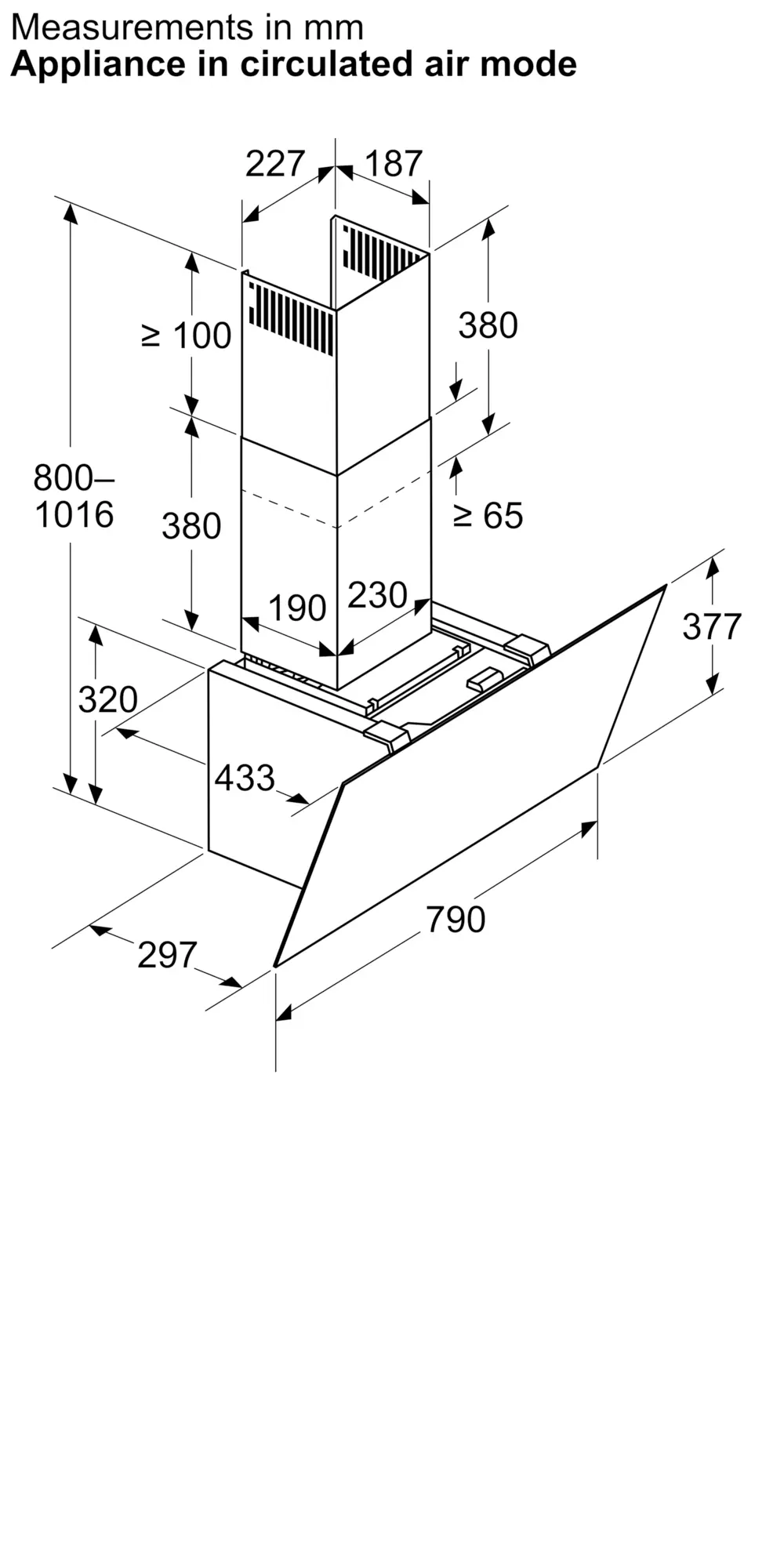

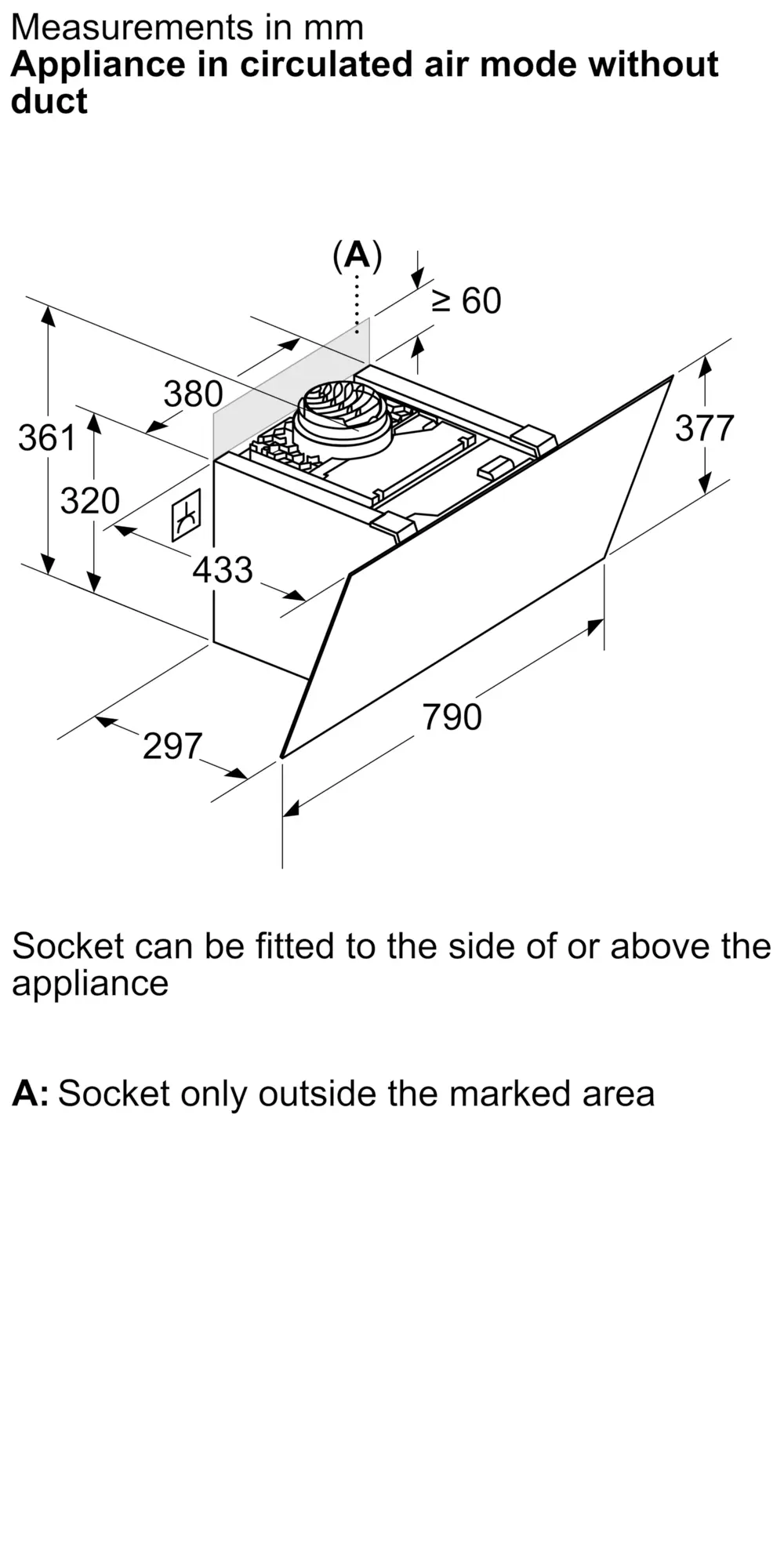

Appliance height recirculating max
1016 mm
Appliance height recirculating min
800 mm
1 / 0
climateControl sensor
No
iQdrive
Yes
Silence
Yes
Clean filter reminders
No
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
GENERAL.N_A W
Total luminance
502 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
Yes
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Home Connect Features
iService Remote, Remote Monitoring and Control
Control your hood with your Home Connect hob
Yes
Smart Hood Automatic
Yes, with all hobs with same feature and connected Home Connect account
