Technical Overview
Installation type
Wall-mounted
Type of appliance width
75 cm
Colour of appliance
Stainless steel
Sound power at max. speed (2010/30/EC)
65 dB
Maximum output air extraction
454 m³/h
Boost position air extraction
739 m³/h
Ventilation type
Convertible
Highlights
Special Features
for optimal visibility and ambience while cooking. quickly and easily manage the power levels and the LED light Type of appliance width
75 cm
Color body
Stainless steel
Installation type
Wall-mounted
Ventilation type
Convertible
Total power of the motors
250 W
Controls
LED, touch control
Number of speed settings
3-stages + intensive setting
Maximum output air extraction
454 m³/h
Boost position air extraction
739 m³/h
Sound power at max. speed (2010/30/EC)
65 dB
Sound power boost (2010/30/EC)
74 dB
Maximum output recirculating air
404 m³/h
Boost position output recirculating
499 m³/h
Sound power at max. speed (recirculation)
72 dB
Sound power boost (recirculation)
76 dB
Grease filter material
Washable stainless steel
Energy efficiency rating
B
Total annual energy consumption
62.5 kWh/annum

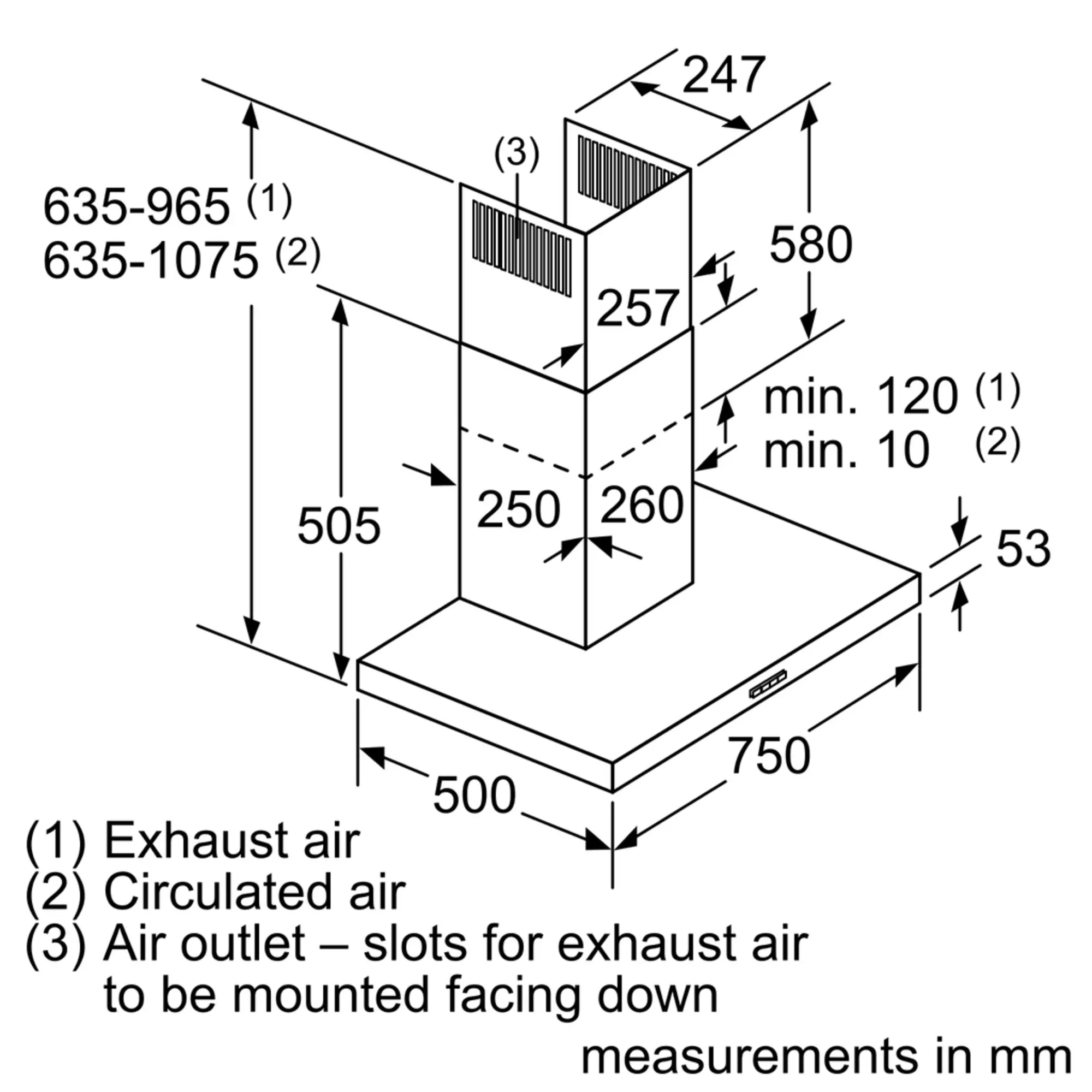

Height of the appliance
53 mm
Width of the appliance
750 mm
Height of the chimney
583-912/583-1022 mm
Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
Length electrical supply cord
130.0 cm
Appliance height exhaust air max
965 mm
Appliance height exhaust air min
635 mm
Appliance height recirculating max
1075 mm
Appliance height recirculating min
635 mm
Control your hood with your Home Connect hob
No
Colour temperature
Neutral (3.500 K)
Illumination type softlight
No
Color temperature control via smartphone with Home Connect
No
Power consumption standby/display off
0.3 W
