Technical Overview
Dimensions
45x812x520 mm
Cooktop type
Radiant cooktop
Number of cooking zones
4
Frame type
Design frame
Avoid scorching with fryingSensor
No
Type of control
touchControl
Cooking zone flexibility
Two-ring cooking zone, Two-ring cooking zone with roaster extension
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Specifications
Cooktop type
Radiant cooktop
Basic surface material
Ceramic
Colour of appliance
Black
Frame type
Design frame
Dimensions
45x812x520 mm
Dimensions of the packed product (HxWxD)
100x1130x620 mm
Width
80 cm

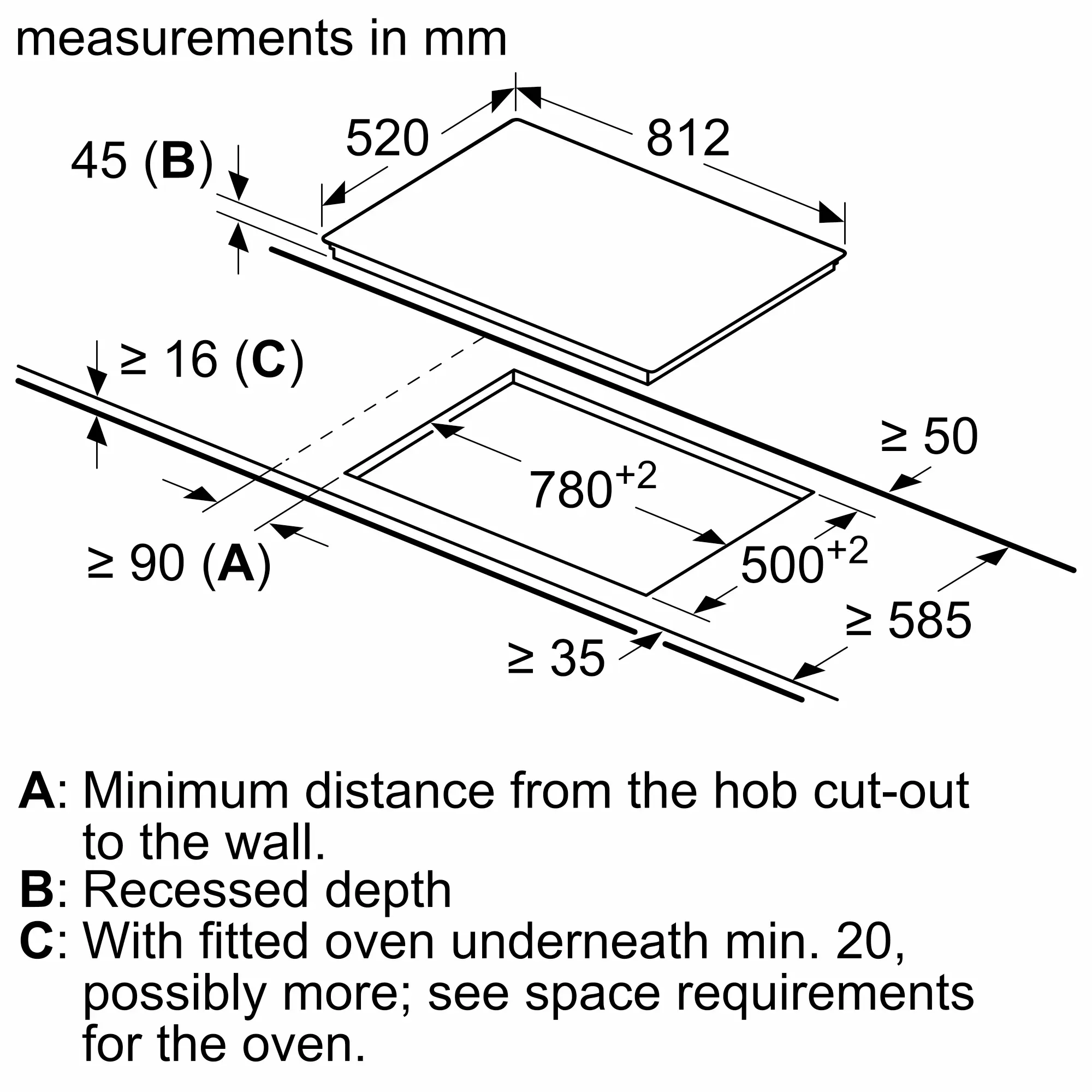

Required niche size for installation (HxWxD)
45 x 780-780 x 500-500 mm
Minimum worktop thickness
16 mm
Connection Rating
9300 W
Plug type
no plug (electrical connection by electrician)
Number of cooking zones
4
Cooking zone flexibility
Two-ring cooking zone, Two-ring cooking zone with roaster extension
Dimensions of the heating elements
1 x (21,0 cm Ø), 1 x (14,5 cm Ø), 1 x (23,0 cm Ø), 1 x (20,0 cm Ø)
Power of the heating elements
1 x 1.2, 1 x 2.1, 1 x 2.1 (2.6), 1 x 2.4 (3.4) kW
Number of electric warming zones
0
Type of control
touchControl
activeLight Plus
No
Zone Light
No
Avoid scratches on glass ceramic with GlassProtect
No
Favourite button
No
hotplate control settings
17 power levels
Keep warm function
No
Timer
Off switch, Count-down timer (on appliance)
heating with booster
Rear middle, Front left
Pan boost
No
Automatic boil start
No
Automatic linking/ separating of cooking zones
No
powerMove Pro
No
Increase/ decrease power level via Power Move
No
Power Transfer
No
Automatic zone selection
No
Quick Start
No
Restart
Yes
Quick switch-off
No
Energy consumption display
Yes
Find the right setting with Dish assistant
No
Infrared cooking sensor
No
Avoid scorching with frying sensor
N/A
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
cookConnect
No
Smart Hood Automatic
No
Smart Home Trigger for individual configuration
No
Updateable appliance (available with connected Home Connect account): keep appliance always up to date with latest status of software.
No
Residual heat indicator
Separate
Safety device
Child-proof lock, Inactivity time shut off, Key Lock
Number of plate on indicators
1
