iQ700 Induction hob with integrated ventilation system 80 cm surface mount with frameEX870NX68E
EX870NX68E
5 Year Warranty
1 / 0
iQ700 Induction hob with integrated ventilation system 80 cm surface mount with frameEX870NX68E
EX870NX68E
£2,999.00
Recommended retail price
Datasheet
Find a local Dealer
Find a local retailer in your vicinity
5 Year Warranty
5 Year Warranty
All of the studioLine products come with a 5 year warranty for added confidence. Online registration is required. This warranty covers manufacturing and material faults.
Which? 5* Reliability
Which? 5* Reliability
This product has been awarded the Which? 5* Reliability award
iQ700 Induction hob with integrated ventilation system 80 cm surface mount with frameEX870NX68E
EX870NX68E
£2,999.00
Recommended retail price
Datasheet
Find a local Dealer
Find a local retailer in your vicinity
5 Year Warranty
5 Year Warranty
All of the studioLine products come with a 5 year warranty for added confidence. Online registration is required. This warranty covers manufacturing and material faults.
Which? 5* Reliability
Which? 5* Reliability
This product has been awarded the Which? 5* Reliability award
Technical Overview
Dimensions
223x812x520 mm
Cooktop type
Induction with hood
Number of cooking zones
4
Frame type
Design frame
Ventilation type
Convertible
Maximum output air extraction
500 m³/h
Sound power at max. speed (2010/30/EC)
69 dB
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Awards
Specifications
Colour of appliance
Black
Width
80 cm
Number of cooking zones
4
Dimensions of the heating elements
4 x (20,0 x 24,0 cm)
Power of the heating elements
4 x 2.2 (3.7) kW
Frame type
Design frame
Number of radiant plates
0
Number of induction plates
4
heating with booster
All
Controls
Double slider touch control
Ventilation type
Convertible
Maximum output air extraction
500 m³/h
Boost position air extraction
622 m³/h
Maximum output recirculating air
499 m³/h
Boost position output recirculating
595.0 m³/h
Sound power at max. speed (2010/30/EC)
69 dB
Sound power boost (2010/30/EC)
74 dB
Noise level
69 dB(A) re 1 pW
Energy consumption of hob
185.0 Wh/kg
Included accessories

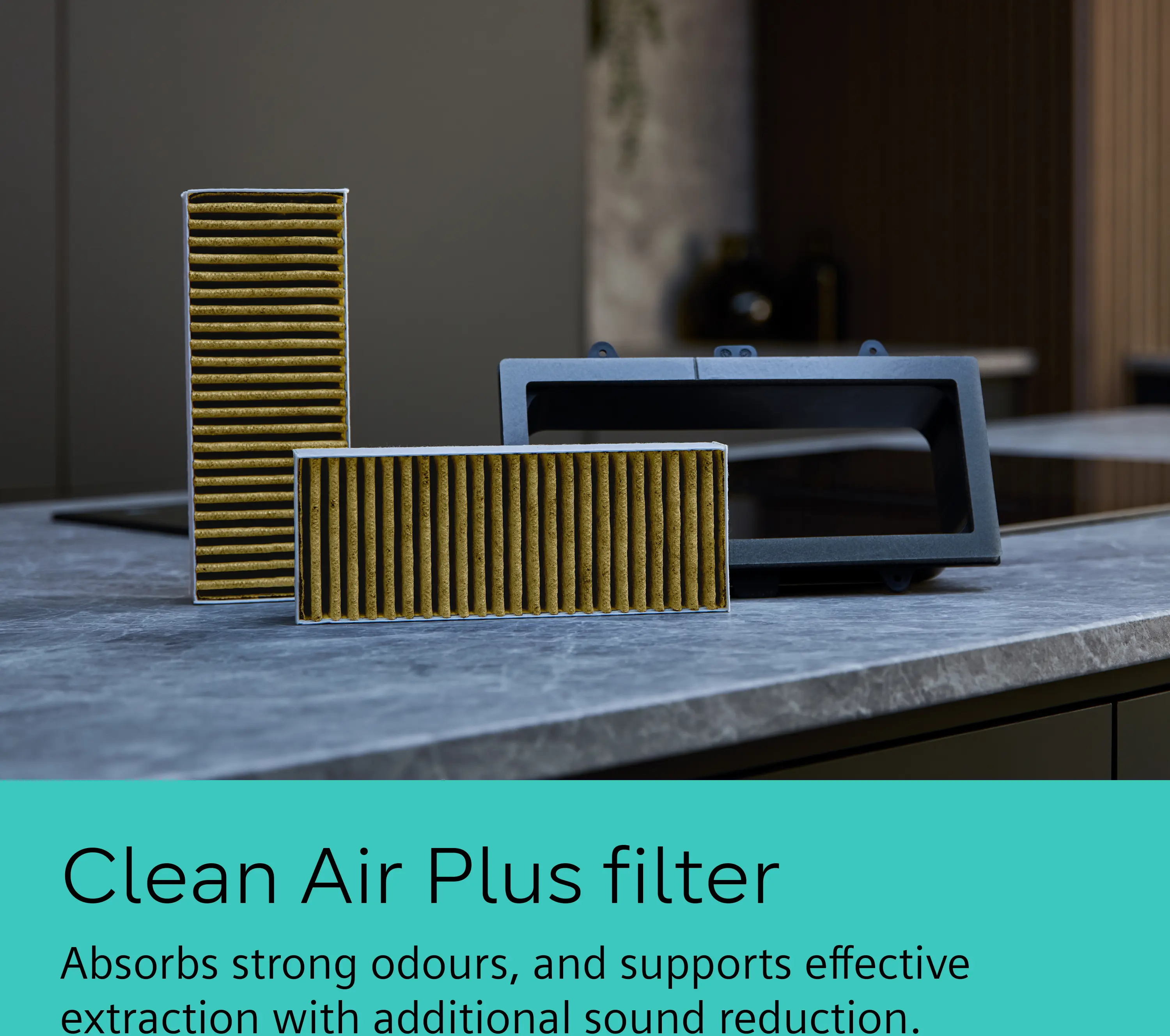

1 x Slider for unducted recirculation, 1 x Clean Air Plus odor filter
Dimensions
223x812x520 mm
Dimensions of the packed product (HxWxD)
430x950x660 mm
Minimum height for installation
490 mm
Maximum height for installation
490 mm
Minimum width for installation
750 mm
Maximum width for installation
750 mm
Depth for installation
223 mm
1 / 0
Connection Rating
7400 W
Nominal power
220-240/380-415 V
Length electrical supply cord
110 cm
Plug type
no plug (electrical connection by electrician)
Included user manuals
[DA, DE, ES, FI, FR, NO, PT, SV]

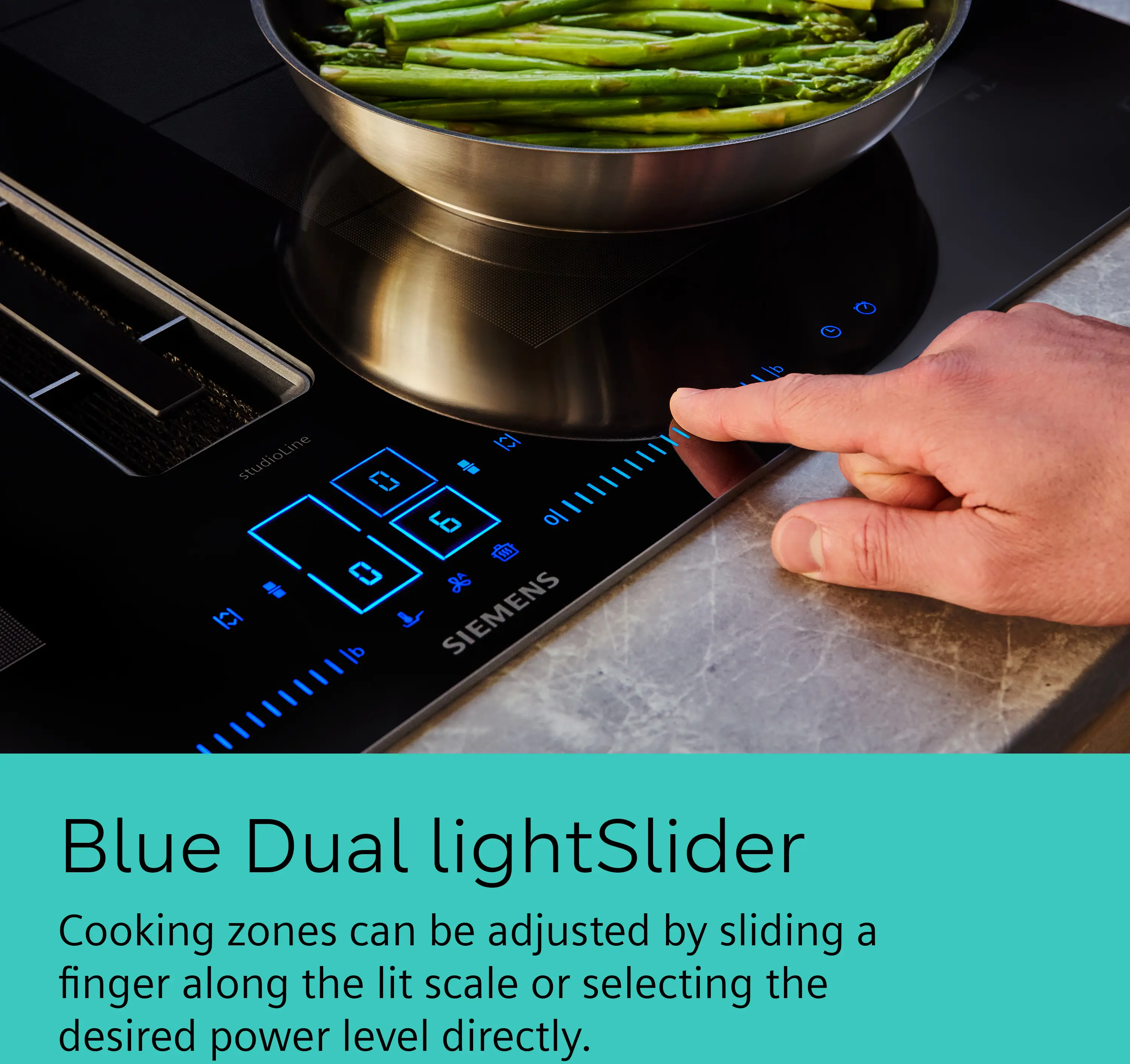

Type of control
Dual lightSlider
hotplate control settings
17 power levels
Cooking zone flexibility
2 flex induction cooking zones
powerBoost
Yes
Avoid scratches on glass ceramic with GlassProtect
Yes
activeLight Plus
No

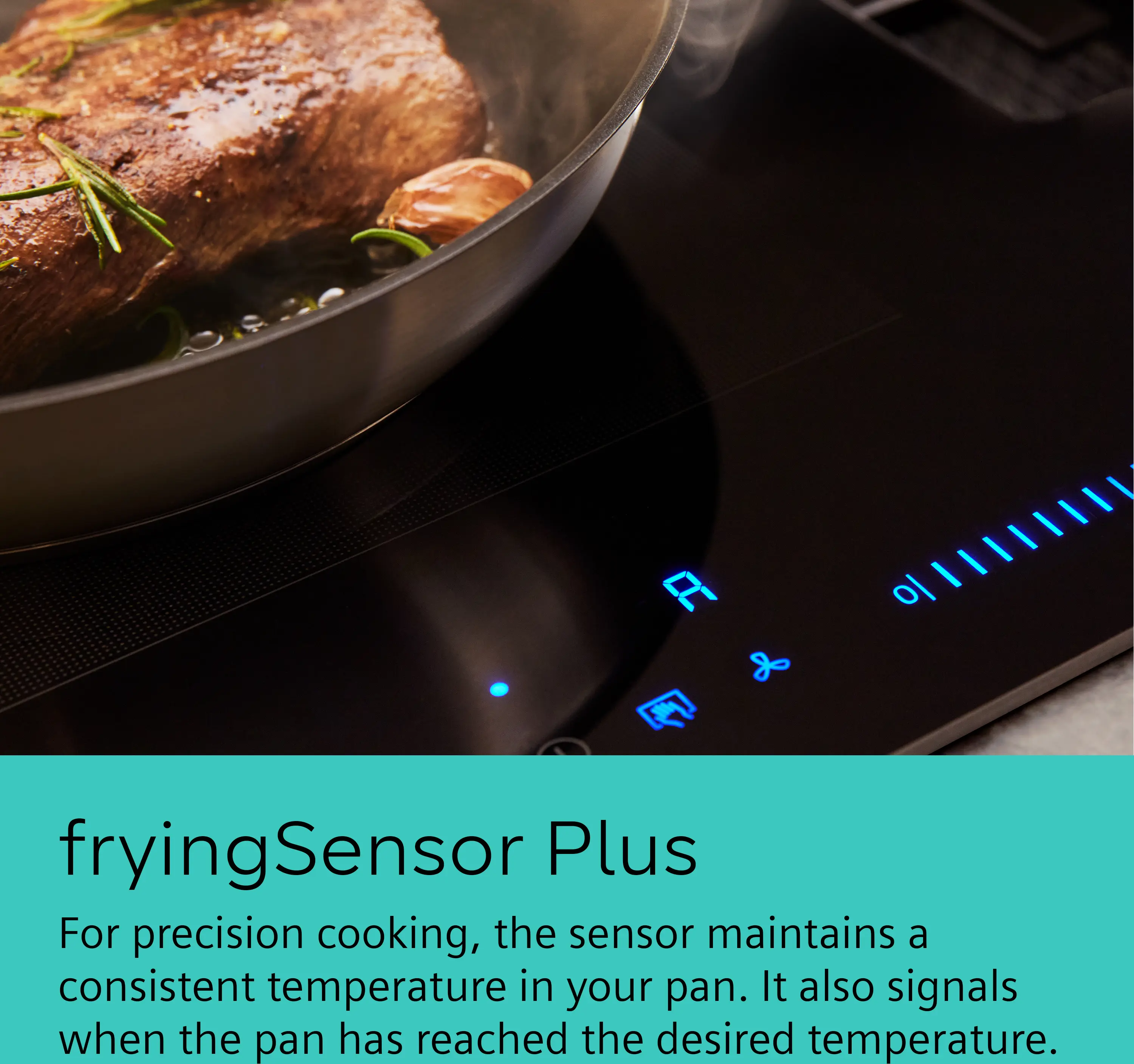

Avoid scorching with fryingSensor
Yes
Infrared cooking sensor
No
cookingSensor Plus ready (sensor available as additional purchase)
Yes
Powermove
Yes
Power Transfer
Yes
Quick Start
Yes
Keep warm function
Yes
Electronic timer
Yes
Timer
Off switch, Count-down timer (on appliance), Count-up timer (on appliance)
iQdrive
Yes
Boost position
Yes
Delay Shut off modes
Yes
Clean filter reminders
Yes
Number of speed settings
17-stage + 2 intensive
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Home Connect Features
iService Remote, Remote monitoring
Safety device
Child-proof lock, Inactivity time shut off, Key Lock, Pan/pot recognition shut off, Spill recognition shut off
Residual heat indicator
Separate
