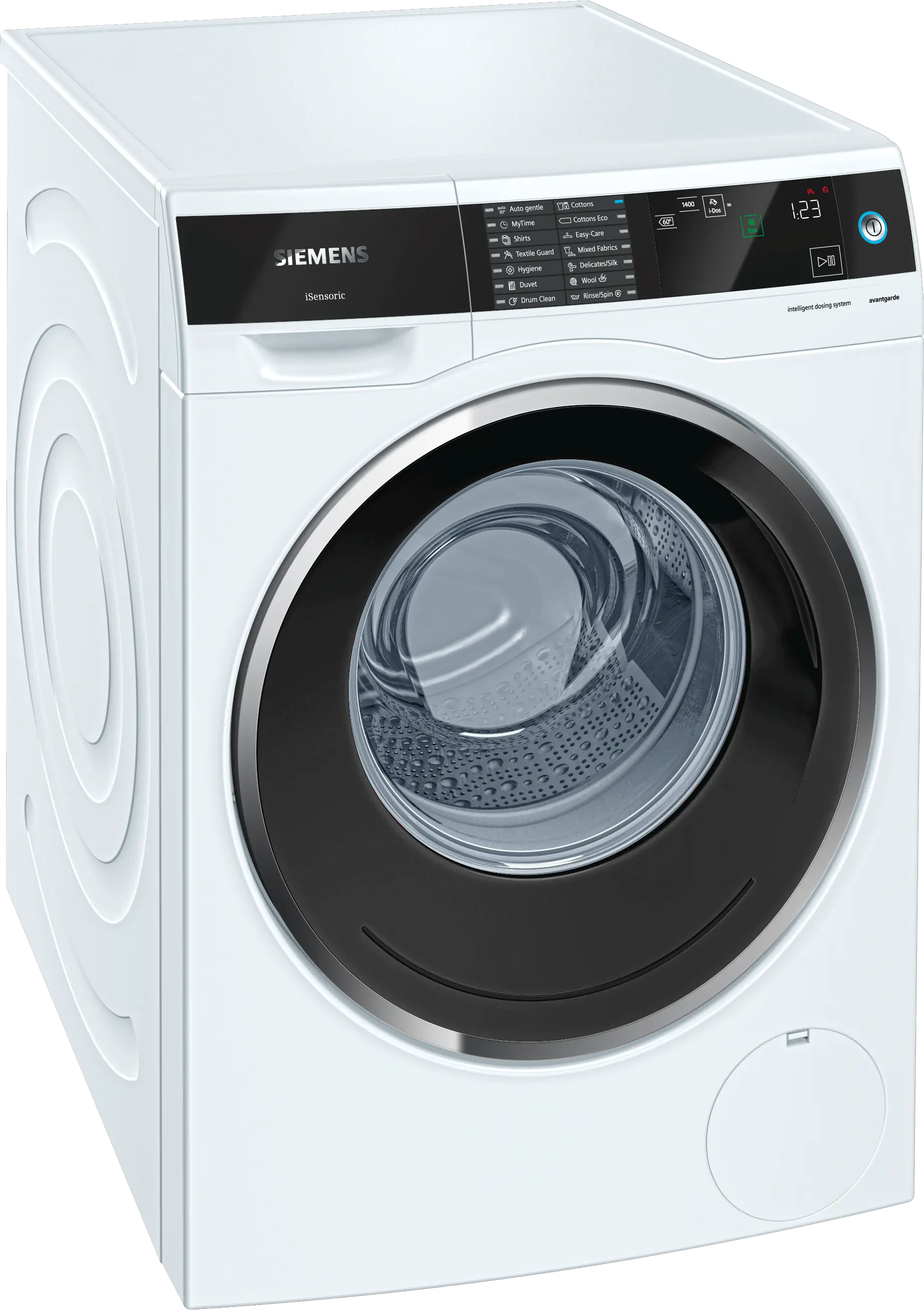

avantgarde Front loading automatic washing machine

WM14U640GB

EU datasheet
In a range from: A+++ to D

£ 1,369.00

Recommended retail price


iSensoric washing machine from design line avantgarde with multiTouch LED Display and intelligent i-Dos automatic dosing system.

Highlights

Measure precisely – easier than ever: i-Dos.

Easier than ever before because the first integrated precision dispensing system determines exactly how much detergent and fabric softener your laundry needs. This depends on different factors such as the type of textiles, load size, water hardness and degree of soiling. It will efficiently calculate the dosage down to the last millilitre – to ensure even better fabric care and first-class washing results. Incorrect dosage not only leads to poor washing results and damages the fabric, but it also increases water and energy consumption. The new iQ 800 with i-Dos uses only as much detergent, water and energy as is actually necessary.

An outstanding highlight in form and function: avantgarde laundry care design.

The avantgarde laundry care design is a modern, minimalistic concept, that perfectly combines functionality and style: blue light ring, inclined panel and iSelect display enhance the usability while the seamlessly integrated big door with tap-to-open button and the refined chromeLine create a lasting visual impact. Your laundry care appliances become design icons that deliver excellent results.

The clever solution for forgotten items of laundry: the reload Function.

Whether a forgotten sock or shirt – with the Reload Function you can now stop the already running washing procedure and open the door of the washing machine to add any forgotten items of laundry to the washing machine drum.

Efficient, durable and quiet: iQdrive.

Always nice and quiet, whether lower energy consumption with identical performance, short programme times with optimum results or even with maximum spin settings – all that is not a problem for the brushless iQdrive motor. And on top of all these advantages, it runs virtually free from wear.

Intuitive operation and convenient additional function: the large display with end-time delay

The large display provides maximum convenience and flexibility during washing, showing all relevant programme information at a glance such as programme sequence, temperature and speed and providing helpful additional functions such as 24-hour end-time delay and much more.

Additional information

Performance
  • Energy Efficiency Class: A+++
  • Capacity: 9 kg
  • Maximum spin speed: 1400 rpm
  • B spin class
  • Energy consumption :98 kWh per year, based on 220 standard washing cycles
  • -50% more economical (98kWh/year) than the standard value (217 kWh/year)
  • Energy consumption: standard 60 °C cotton programme 0.55 kwh full load and 0.39 kwh partial load and 40 °C cotton programme 0.33 kwh partial load
  • Weighted power consumption off-mode / left-on mode: 0.12 W / 0.43 W
  • Duration of the left-on mode: 15 min
  • Water consumption 11220 litres per year, based on 220 standard washing cycles
  • Cottons 60 Eco and Cottons 40 Eco are the standard washing programmes to which the information in the label relates. These programmes are suitable to clean normally soiled cotton laundry and are the most efficient programmes in terms of combined energy and water consumption.
  • Programme time:60 °C cotton programme 315 min at full load 315 min at partial load and 40 °C cotton programme 300 min partial load
  • Drum volume: 70 litres
  • Noise level washing : 47dB (A) re 1pW: Noise level spinning:71dB (A) re 1 pW
Programmes/functions
  • Special programmes: mixed fabrics, textile guard re-proofing programme, shirts/blouses, rinse/spin, automatic soft, Duvet, drum clean with reminder, handwash/wool, delicates
  • options: waterPlus, prewash, night wash, less ironing, extra rinse cycles, i-DOS 1, i-DOS 2, memory, soaking 10-20-30 min, speedPerfect, ecoPerfect, start/pause with reload function
Key features
  • iQ Drive
  • Consumption indicator: Information about water and energy consumption prior to start of programme
  • varioPerfect:speed or energy efficiency with perfect wash performance every time
  • waterPerfect Plus: water management system
  • antiVibration Design - for more stability and quietness
Additional features
  • Large touch-LED-display for programme status indication, temperature selection, max. spin speed, remaining time and 24 h end time delay, child lock and load recommendation
  • waveDrum: for highly effective and extremely gentle laundry care
  • DrumClean with reminder function
  • Reload function: Pause the already running washing machine to add any forgotten items of laundry to the drum.
  • hydroSensor monitors and controls rinse cycles
  • hydroSafe - 24 hour anti-leak protection
  • Drum interior light

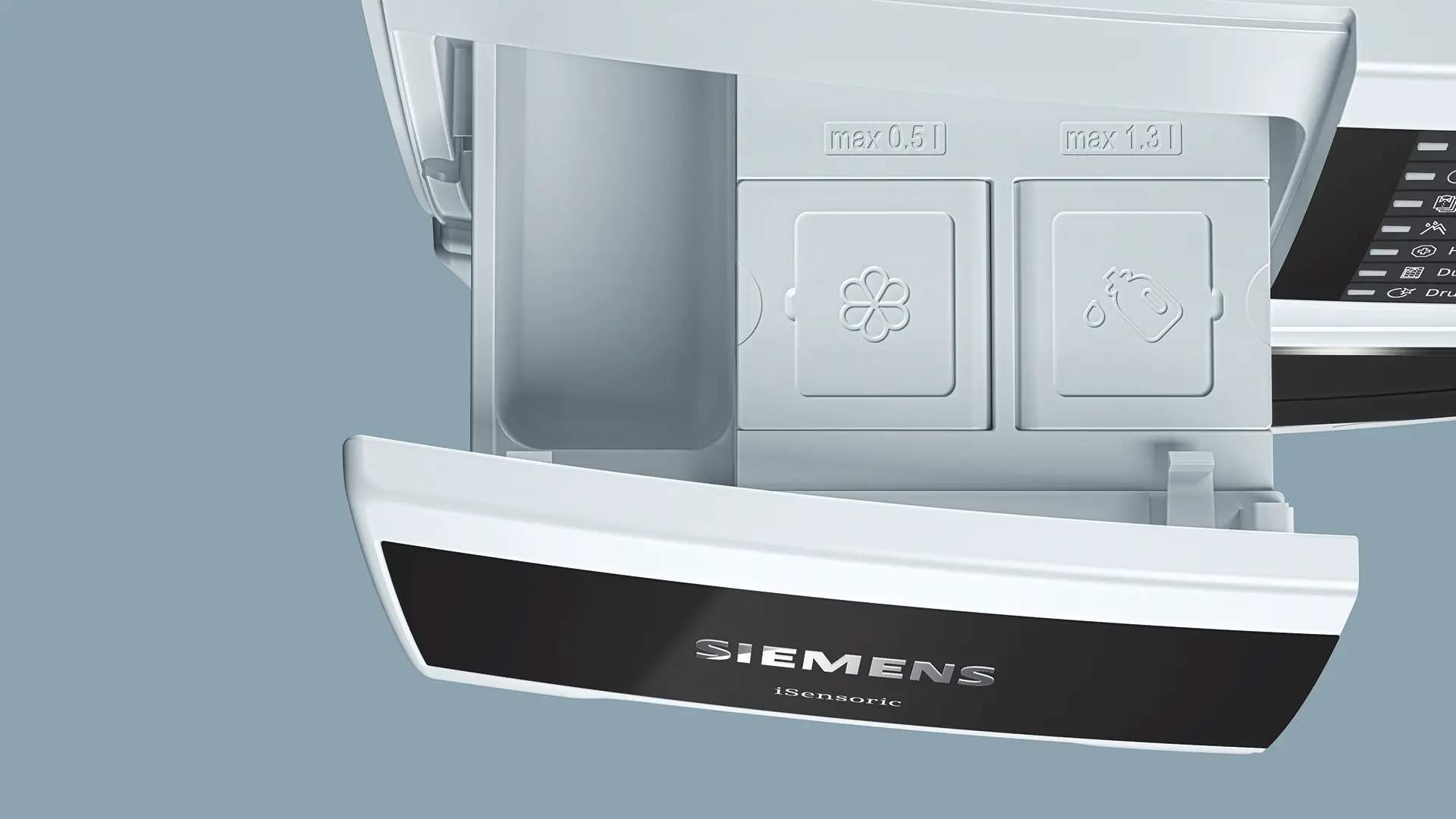

  • Easy cleaning detergent drawer
  • Acoustic signals: Multi-tone
  • Magnet door lock
  • Electronic child safety package
  • Sound insulation by additional noise reduction material
Technical Information
  • Dimensions (H X W X D): 84.8 x 59.8 x 62.2 cm

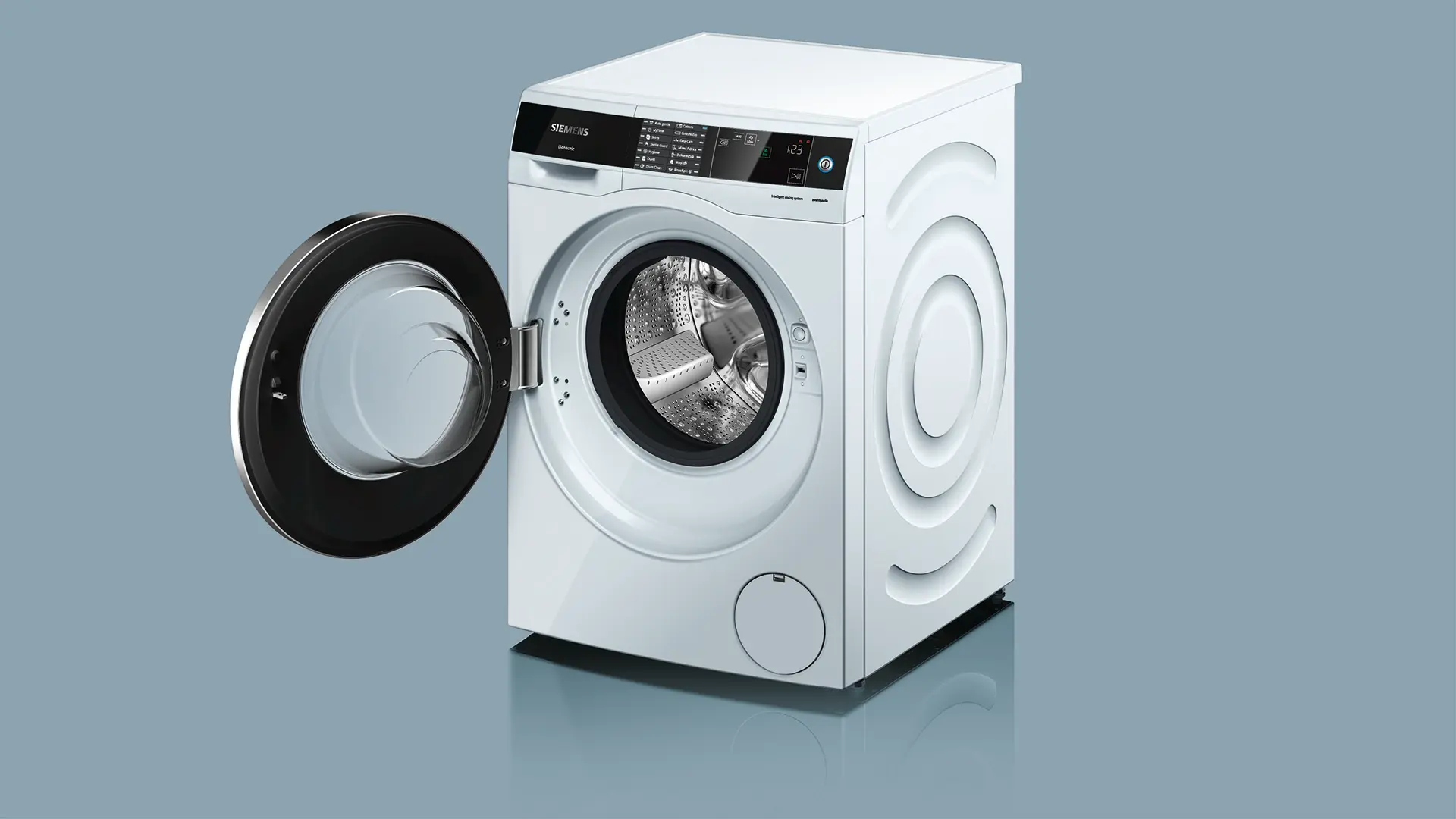

  • integrated 32 cm porthole, chrome-black with 130° opening door
Technical information
General
Dimensions of the product (mm) 848 x 598 x 622 mm
Capacity (kg) 9.0 kg
Max. spin speed (rpm) 1,363 rpm
Energy efficiency A+++
Energy consumption annual (kWh/annum) - NEW (2010/30/EC) 98
List of programmes Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
Cottons programme Economy, Standard cold - 90°C
Easy-care programme Standard cold - 60°C
Wash optimization Automatic Soft, Duvet, mixture, outdoor/waterproofing, rinsing/spinning, shirts, Start / Reload
Digital countdown indicator
Start delay options Continuous
Noise level washing (dB) 47
Noise level spinning (dB) 71
Door opening Left
Water protection system hydroSafe
Hot & cold water intake
Interior light
Removable work top
Length of electrical supply cord (cm) 210 cm
Power consumption in off-mode (W) - NEW (2010/30/EC) 0.12 W
Power consumption in left-on mode (W) - NEW (2010/30/EC) 0.43 W
Duration of the left-on mode - NEW (2012/30/EC) (min) 15 min
Available languages display English, Symbols
Approval certificates CE, VDE
Connectivity
Home Connect
Connection
Length of electrical supply cord (cm) 210 cm
Frequency (Hz) 50 Hz
Hot & cold water intake
Plug type GB plug
Construction type
Color / Material body White
Color / Material panel Black, White
Construction type Freestanding
Door opening Left
Installation type Freestanding
Type Front loader
Removable work top
Tub material Plastic
Wheels
Size and weight
Depth with open door 90 degree (mm) 1,142 mm
Dimensions of the product (mm) 848 x 598 x 622 mm
Drum volume (l) 65 l
Height-adjustable by 1.20 cm
Net weight (kg) 81.0 kg
Comfort
Programme end indication Acoustic
Loading sensor
Degree of dirtiness recognition
Digital countdown indicator
Drying progress indicator LED-display
Noise level spinning (dB) 71
Noise level washing (dB) 47
Turbidity sensor
Start delay options Continuous
Self adjusting water level to load
Programmes
Cold wash option
Electronic After-sales Service
List of programmes Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
Cottons programme Economy, Standard cold - 90°C
Easy-care programme Standard cold - 60°C
Separate temperature control options Steps
Wash optimization Automatic Soft, Duvet, mixture, outdoor/waterproofing, rinsing/spinning, shirts, Start / Reload
Water plus
Spinning
Spin speed options Variable
Skip spin
Safety
Balance control
Foam control
Water protection system hydroSafe
Consumption values
Energy consumption kWh 30C delicates (kWh) 0.19 kWh
Energy consumption kWh 30C woollens (kWh) 0.19 kWh
Energy consumption kWh 40C colour (kWh) 1.10 kWh
Energy consumption kWh 40C easy care (kWh) 0.70 kWh
Energy consumption kWh 95C cotton (kWh) 2.14 kWh
