Technical Overview
Type of appliance width
90 cm
Colour of appliance
Stainless steel
Sound power at max. speed (2010/30/EC)
58 dB
Maximum output air extraction
440 m³/h
Boost position air extraction
800 m³/h
Ventilation type
Convertible
Highlights
Special Features
ensures efficient odour and steam removal. extremely quiet For peak performance - Intensive setting with automatic revert Type of appliance width
90 cm
Color body
Stainless steel
Ventilation type
Convertible
Total power of the motors
160 W
Controls
7-segment display, Low-lift pushbuttons
Number of speed settings
3-stage + 2 intensive
Maximum output air extraction
440 m³/h
Boost position air extraction
800 m³/h
Sound power at max. speed (2010/30/EC)
58 dB
Sound power boost (2010/30/EC)
69 dB
Maximum output recirculating air
290 m³/h
Boost position output recirculating
360.0 m³/h
Sound power at max. speed (recirculation)
69 dB
Sound power boost (recirculation)
73 dB
Grease filter material
Washable aluminium
Energy efficiency rating
A
Total annual energy consumption
35.2 kWh/annum
Height of the appliance
52 mm
Width of the appliance
900 mm
Height of the chimney
699-879/699-999 mm
Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
Length electrical supply cord
130.0 cm

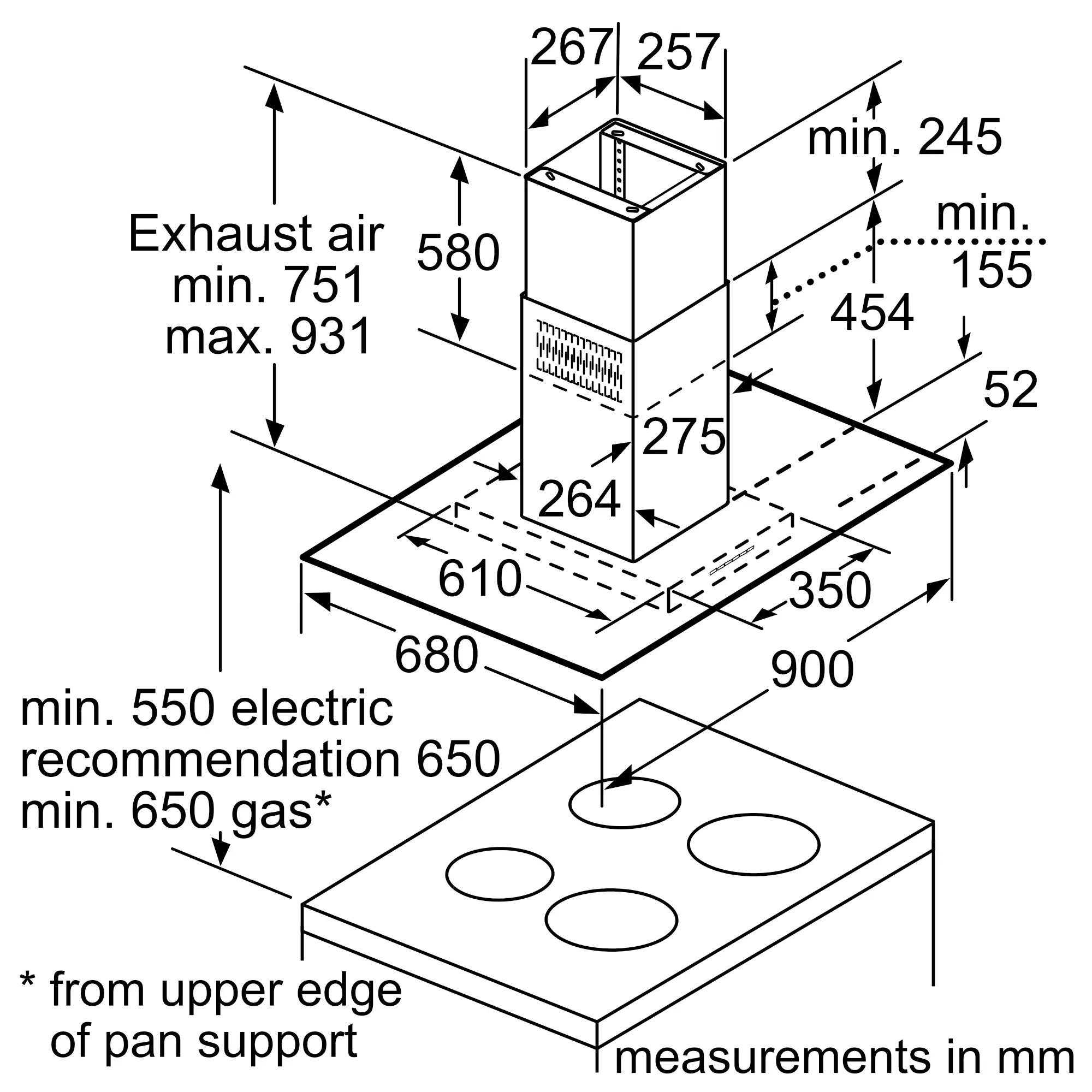

Appliance height exhaust air max
931 mm
Appliance height exhaust air min
751 mm

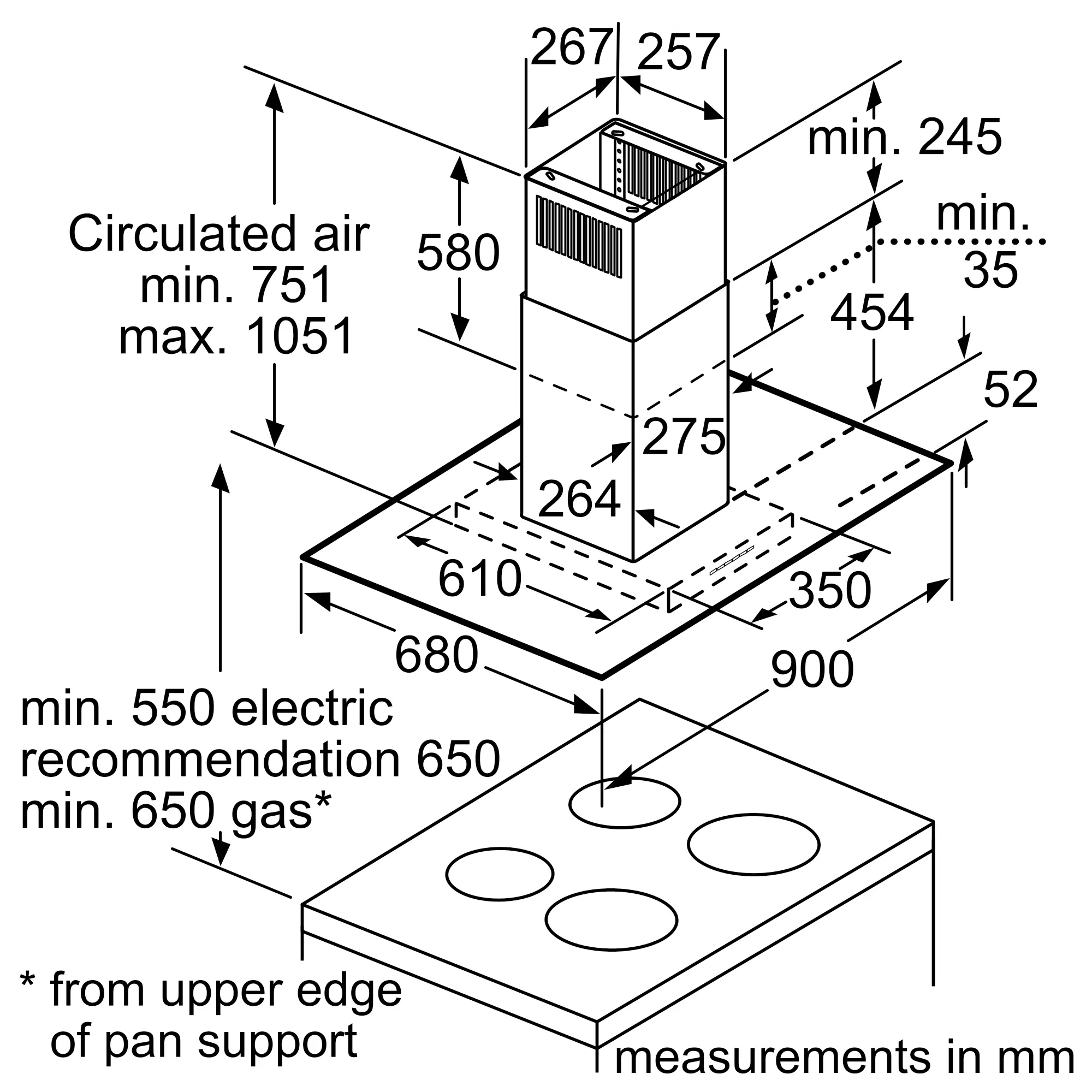

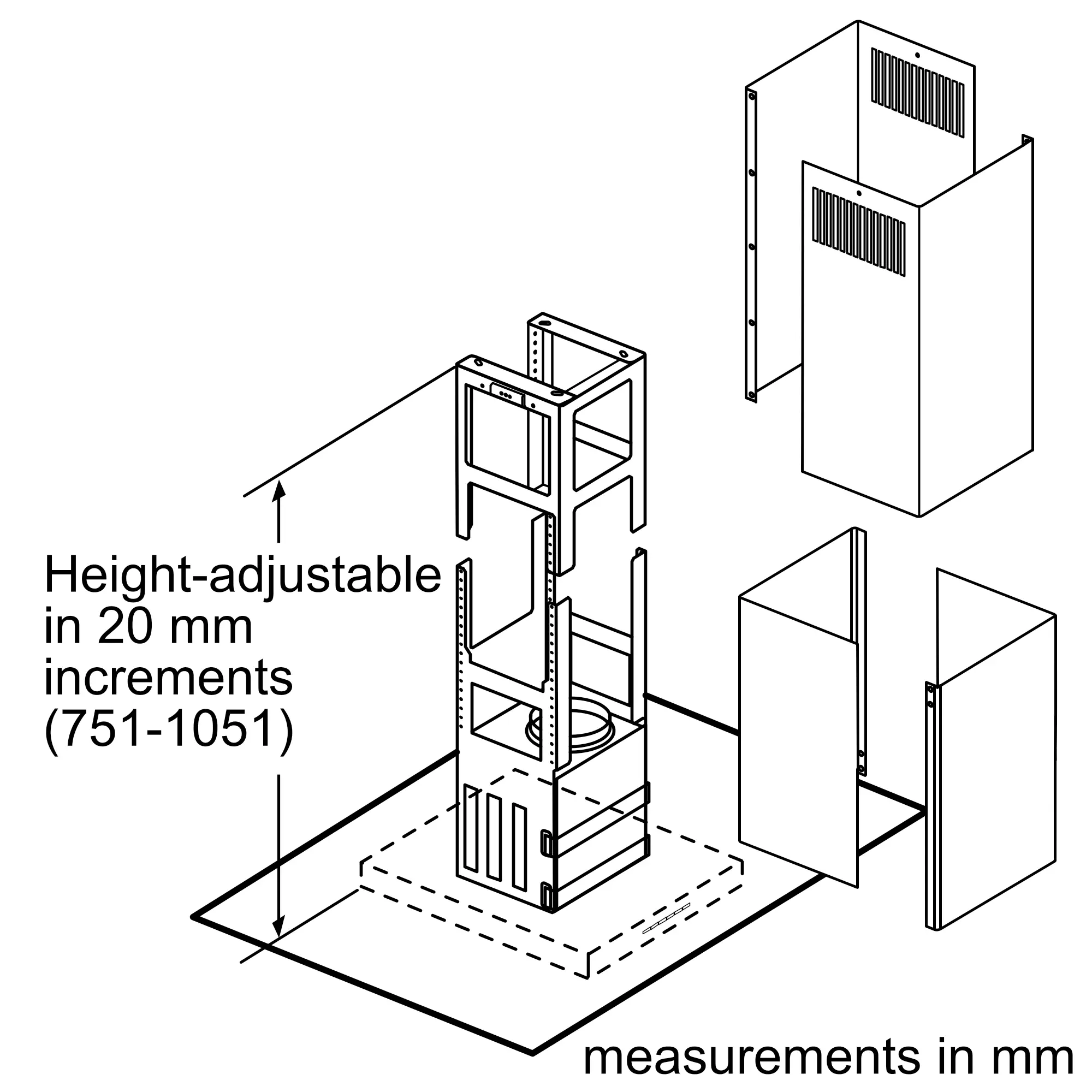

Appliance height recirculating max
1051 mm
Appliance height recirculating min
751 mm
Control your hood with your Home Connect hob
No
Delay Shut off modes
10 min
Total power of the lamps
12 W
Color temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Color temperature control via smartphone with Home Connect
No
